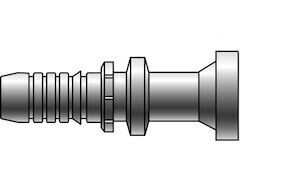

Hydraulic Fitting, 1"X1" Code 62 Flange

The 16GS-16FLH Hydraulic Fitting is a 1" Code 62 flange GlobalSpiral coupling engineered for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece, no-skive design speeds up assembly by eliminating skiving—reducing labor, assembly errors, odor, and contamination risk in fluid power systems. Built to handle demanding conditions, GlobalSpiral thread ends support working pressures up to 6,000 PSI and feature TuffCoat plating for enhanced corrosion resistance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-16FLH
• Brand / Series: Gates® GlobalSpiral
• Product Type: Hydraulic hose coupling / flange fitting
• Flange Type: Code 62 flange
• Flange Nominal Size: 1 in
• Hose ID Compatibility: 1 in
• Overall Length: 4.92 in
• Cutoff Length: 2.7 in
• Flange Thickness: 0.38 in
• Flange Outside Diameter: 1.88 in
• Design: Two-piece, no-skive (reduces assembly time and contamination risk)
• Pressure Capability: Up to 6,000 PSI working pressure (GlobalSpiral thread ends)
• Coating: TuffCoat plating for enhanced corrosion resistance

Ideal For

• Building hose assemblies for high-pressure, high-impulse hydraulic systems
• Spiral-wire hose applications where no-skive assembly saves time and reduces errors
• Equipment using 1" Code 62 flange connections
• Environments where improved corrosion resistance from TuffCoat plating is beneficial
