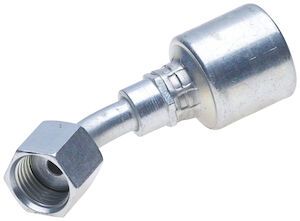

Hydraulic Fitting, 1"X1" Female Flat Face O-Ring 45 Deg

The 16G-16FFORX45 Hydraulic Fitting is a 1" female flat face O-ring 45° MegaCrimp® coupling engineered for a secure, leak-resistant hydraulic hose connection. Built around the patented MegaCrimp® design, it uses an internal “C” insert to help accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal. This design can also help streamline inventory by allowing one coupling size to work across multiple hose ODs on both one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 16G-16FFORX45
• Product Type: Hydraulic hose crimp coupling / fitting
• Connection Type: Female Flat Face O-Ring 45°
• Fitting Nominal Size: 1 in
• Hose ID: 1 in
• Thread Size: 1-7/16"-12
• Thread Pitch: 12
• Length: 5.78 in
• Nut Hex Size: 41 mm
• Cutoff Length: 90.1 in (as provided)
• Drop Length: 0.94 in
• MegaCrimp® Feature: Patented “C” insert supports varied hose constructions and helps form a concentric, leak-resistant seal

Ideal For

• Hydraulic hose assemblies requiring a 1" female flat face O-ring 45° end
• Applications where a flat-face O-ring seal is preferred to reduce leakage risk
• Shops standardizing on MegaCrimp® couplings to help simplify fitting inventory
• One- and two-wire hose applications with varied hose construction and wall thickness
• Hydraulic equipment repair where correct thread (1-7/16"-12) and 1" hose ID fitment is required
