Hydraulic Fitting, 1"X1" Female Flat Face O-Ring 90 Deg

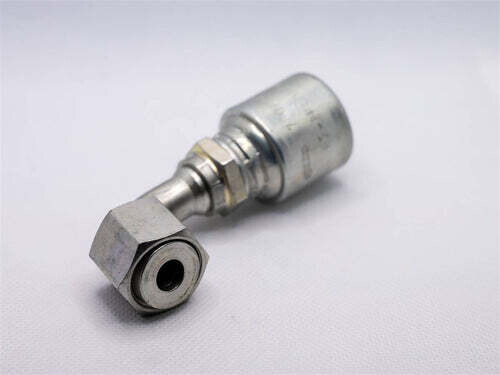

The 16G-16FFORX90S Hydraulic Fitting is a 90° female flat face O-ring (FFOR) hose fitting designed for dependable, leak-resistant hydraulic connections in demanding applications. Built as a MegaCrimp® coupling, it features the patented “C” insert that supports different hose constructions and wall thicknesses while evenly distributing crimping forces to form a concentric, leak-proof seal—helping simplify inventory by allowing one size to accommodate multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 16G-16FFORX90S
• Fitting Type: Female Flat Face O-Ring (FFOR) 90°
• Fitting Nominal Size: 1 in
• Hose ID 1: 1 in
• Thread Size 1: 1-7/16"-12
• Thread Pitch: 12
• Length: 5.11 in
• Nut Hex Size: 41 mm
• Cutoff Length: 2.88 in
• Drop Length: 2.2 in
• Coupling System: MegaCrimp® with patented “C” insert for concentric sealing and broad hose compatibility

Ideal For

• 90° hydraulic hose connections requiring a female flat face O-ring sealing interface
• Equipment where leak resistance and secure sealing are critical
• Shops wanting inventory simplification across varying hose ODs and constructions
• One- and two-wire hose assemblies needing consistent crimp performance with different wall thicknesses
