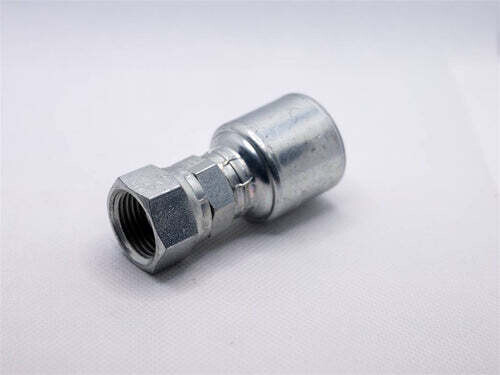

Hydraulic Fitting, 1"X1" Female JIC

The 16G-16FJX Hydraulic Fitting is a MegaCrimp® female JIC coupling designed to deliver a leak-proof crimped connection for 1" hydraulic hose applications. Featuring the patented “C” insert inside the coupling, it helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal, simplifying inventory by allowing one coupling size to work across multiple compatible hose ODs.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-16FJX
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic crimp coupling / female JIC fitting
• Fitting Nominal Size: 1 in
• Hose ID: 1 in
• Thread Type: Female JIC
• Thread Size: 1-5/16"-12
• Thread Pitch: 12
• Nut Hex Size: 41 mm
• Stem Hex Size: 36 mm
• Cutoff Length: 2.01 in
• Overall Length: 4.24 in
• Seal / Insert Design: Patented “C” insert for even crimp force distribution and concentric seal

Ideal For

• Building or repairing hydraulic hoses needing a 1" female JIC crimp end
• Applications where a leak-proof crimp seal is critical
• Shops wanting couplings that can handle different hose constructions/wall thicknesses
• Reducing fitting inventory by using a coupling design that fits multiple compatible hose ODs
• Hydraulic systems requiring the 1-5/16"-12 JIC thread size
