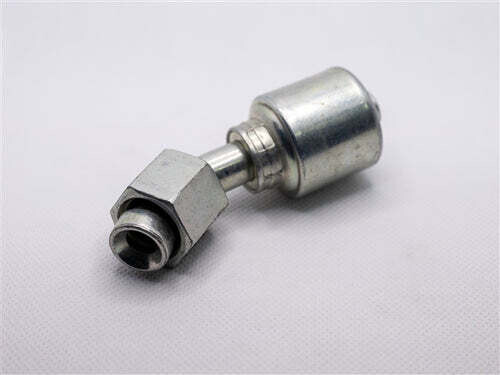

Hydraulic Fitting, 1"X1" Female JIC 45 Deg

The 16G-16FJX45 Hydraulic Fitting is a 1" female JIC 45° MegaCrimp® coupling designed to deliver a secure, leak-resistant hose connection for hydraulic applications. Featuring the patented MegaCrimp® design with an internal “C” insert, it helps accommodate different hose constructions and wall thicknesses while promoting even crimp-force distribution for a concentric seal—supporting simplified inventory by allowing one size to cover multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 16G-16FJX45
• Product Type: Hydraulic hose crimp coupling / fitting
• Connection Type: Female JIC 45°
• Fitting Nominal Size: 1 in
• Hose ID: 1 in
• Thread Size: 1-5/16"-12
• Thread Pitch: 12
• Length: 5.3 in
• Nut Hex Size: 1-1/2 in
• Cutoff Length: 3.06 in
• Drop Length: 0.94 in
• MegaCrimp® Feature: Patented “C” insert supports varied hose constructions and helps form a concentric, leak-resistant seal

Ideal For

• Building or repairing hydraulic hose assemblies requiring a 1" female JIC 45° end
• Applications needing a dependable crimped connection designed for leak resistance
• Shops standardizing on MegaCrimp® couplings to help simplify fitting inventory
• One- and two-wire hose applications where varied hose construction/wall thickness is common
• Hydraulic equipment maintenance where correct thread (1-5/16"-12) and 1" hose ID fitment is required
