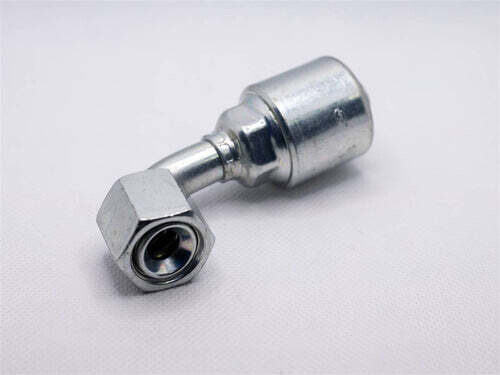

Hydraulic Fitting, 1"X1" Female JIC 90 Deg

The 16G-16FJX90S Hydraulic Fitting is a 90° female JIC hose fitting built for secure, dependable hydraulic connections in demanding equipment applications. Designed as a MegaCrimp® coupling, it features the patented “C” insert that helps create a leak-proof, concentric seal while supporting different hose constructions and wall thicknesses—simplifying inventory by allowing one size to fit multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 16G-16FJX90S
• Fitting Type: Female JIC 90°
• Fitting Nominal Size: 1 in
• Hose ID 1: 1 in
• Thread Size 1: 1-5/16"-12
• Thread Pitch: 12
• Length: 5.73 in
• Nut Hex Size: 41 mm
• Cutoff Length: 3.5 in
• Drop Length: 2.2 in
• Coupling System: MegaCrimp® with patented “C” insert for concentric sealing and broad hose compatibility

Ideal For

• 90° hydraulic hose connections where female JIC ends are required
• Reducing leak risk with a concentric, even-force crimp seal
• Shops managing multiple hose builds who want inventory simplification across hose ODs
• One- and two-wire hose assemblies needing consistent performance with varying wall thicknesses
