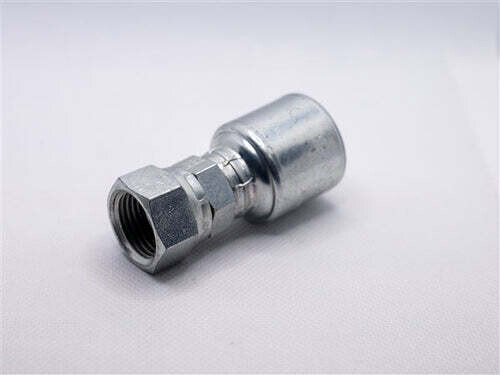

Hydraulic Fitting, 1"X1" Female Pipe

The 16G-16FPX Hydraulic Fitting is a female pipe hydraulic fitting/coupling designed for durable, leak-resistant hose assemblies in demanding hydraulic applications. MegaCrimp® style couplings use an internal “C” insert that helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—helping simplify inventory across varying hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-16FPX
• Product Type: Hydraulic fitting / crimp coupling
• End Style: Female pipe
• Fitting Nominal Size: 1" x 1"
• Hose ID (Hose 1): 1"
• Thread Size 1: 1-11-1/2
• Thread Pitch: 11-1/2
• Nut Hex Size: 1-1/2"
• Stem Hex Size: 1-3/8"
• Overall Length: 4.1"
• Cutoff Length: 1.87"
• Seal / Crimp Design: MegaCrimp® “C” insert supports varied hose constructions and helps form an even, concentric crimp seal
• Hose Compatibility Note: Designed to accommodate different hose ODs on one- and two-wire hoses (per MegaCrimp coupling design)

Ideal For

• Building or repairing hydraulic hoses requiring a 1" female pipe connection
• Equipment and implement hydraulics where secure crimp sealing is essential
• Service shops wanting fewer coupling SKUs via MegaCrimp multi-OD fit
• One- and two-wire hose assemblies using 1" hose ID
• General hydraulic plumbing where a rugged female pipe fitting is needed
