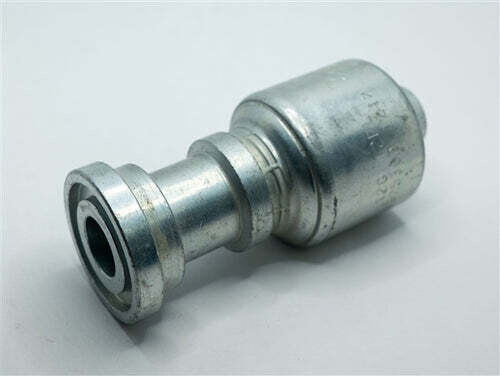

Hydraulic Fitting, 1"X1" Flange

The 16G-16FL Hydraulic Fitting is a MegaCrimp® flange hose coupling designed for reliable, leak-resistant hydraulic hose assemblies using a 1" flange connection. Its patented MegaCrimp® design uses an internal “C” insert to support multiple hose constructions and wall thicknesses, distributing crimping forces evenly to form a concentric seal on both one- and two-wire hoses—helping simplify inventory while delivering dependable performance in demanding hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-16FL
• Product Type: Hydraulic hose coupling / crimp fitting
• End Type: Flange
• Hose ID (Hose End): 1 in
• Flange Nominal Size: 1 in
• Flange Thickness: 0.32 in
• Flange Outside Diameter: 1.75 in
• Overall Length: 4.13 in
• Cutoff Length: 1.90 in
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and a concentric seal
• Compatibility Advantage: One size accommodates multiple hose constructions / wall thicknesses
• Hose Construction Support: Works on one- and two-wire hoses

Ideal For

• Hydraulic hose assemblies needing a 1" flange connection
• High-demand systems where a consistent, leak-resistant crimp seal is critical
• Repairs and rebuilds using 1" ID hose with flange-style ends
• Shops looking to reduce coupling inventory across varying hose constructions
• One- and two-wire hose applications using MegaCrimp® couplings
