Hydraulic Fitting, 1"X1" Flange 90 Deg

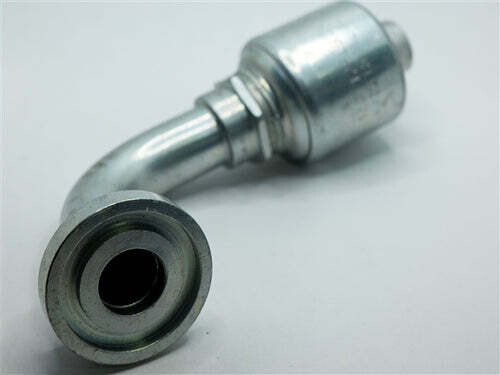

The 16G-16FL90S Gates® GlobalSpiral™ Hydraulic Fitting is a heavy-duty 90° flange coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications with working pressures up to 6,000 PSI. Its two-piece, no-skive design enables faster, cleaner hose assemblies by eliminating skiving, reducing labor time, fabrication errors, odors, and contamination of the fluid power system. Built for severe-duty environments, it features TuffCoat™ plated steel, providing over five times the corrosion resistance of SAE ASTM B117 specifications for long service life in demanding hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-16FL90S
• Brand / Series: Gates® GlobalSpiral™
• Product Type: 90° hydraulic flange fitting / coupling
• Working Pressure: Up to 6,000 PSI
• Design: Two-piece, no-skive coupling
• Flange Nominal Size: 3/4 in
• Flange Outside Diameter: 1.63 in
• Flange Thickness: 0.56 in
• Hose Inside Diameter (ID): 3/4 in
• Overall Length: 4.61 in
• Cutoff Length: 2.6 in
• Drop Length: 5.04 in
• Material / Finish: Steel with TuffCoat™ plating
• Corrosion Resistance: >5× SAE ASTM B117 specification
• Application Compatibility: Spiral-wire hydraulic hose systems
• System Coverage: Part of the GlobalSpiral™ system with 80+ configurations

Ideal For

• High-pressure hydraulic systems requiring up to 6,000 PSI
• Spiral-wire hose assemblies in industrial and mobile equipment
• Applications needing fast, no-skive hose assembly
• Environments requiring enhanced corrosion protection
• Tight installations benefiting from a 90° flange connection
