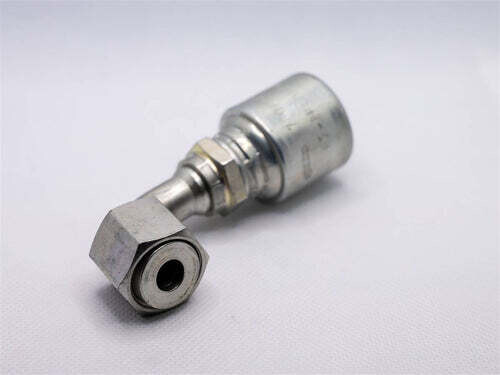

Hydraulic Fitting, 1"X3/4" Female Flat Face O-Ring 90 Deg

The 16G-12FFORX90S Hydraulic Fitting is a 90° female flat face O-ring (FFOR) hose fitting designed for secure, leak-resistant hydraulic connections where a 1" hose ID mates to a 3/4" nominal FFOR interface. Built as a MegaCrimp® coupling, it uses the patented “C” insert to support different hose constructions and wall thicknesses while evenly distributing crimping forces to form a concentric, leak-proof seal—helping simplify inventory by allowing one size to accommodate multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 16G-12FFORX90S
• Fitting Type: Female Flat Face O-Ring (FFOR) 90°
• Hose ID 1: 1 in
• Fitting Nominal Size: 3/4 in
• Thread Size 1: 1-3/16"-12
• Thread Pitch: 12
• Length: 5.09 in
• Nut Hex Size: 36 mm
• Cutoff Length: 2.86 in
• Drop Length: 1.89 in
• Coupling System: MegaCrimp® with patented “C” insert for concentric sealing and broad hose compatibility

Ideal For

• 90° hydraulic hose assemblies requiring a female flat face O-ring connection
• Tight routing needs where a 90° drop improves hose alignment and clearance
• Applications where leak resistance and consistent sealing are critical
• Standardizing hose-end inventory across varying hose constructions and wall thicknesses on one- and two-wire hoses
