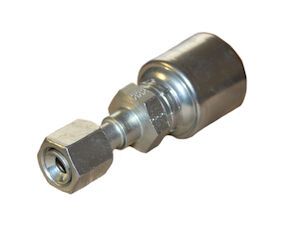

Hydraulic Fitting, 1"X7/8" Female JIC

The 16G-14FJX Hydraulic Fitting is a MegaCrimp® female JIC coupling built to provide a leak-proof crimped connection for 1" hydraulic hose while stepping down to a 7/8" female JIC thread end. Its patented internal “C” insert helps accommodate varying hose constructions and wall thicknesses, distributing crimping forces evenly to form a concentric seal and helping simplify inventory by allowing one coupling size to work across multiple compatible hose ODs.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-14FJX
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic crimp coupling / female JIC fitting
• Hose ID: 1 in
• Fitting Nominal Size: 7/8 in
• Thread Type: Female JIC
• Thread Size: 1-3/16"-12
• Thread Pitch: 12
• Nut Hex Size: 36 mm
• Stem Hex Size: 36 mm
• Cutoff Length: 4.08 in
• Overall Length: 6.31 in
• Seal / Insert Design: Patented “C” insert for even crimp force distribution and concentric seal

Ideal For

• Hydraulic hose builds needing a 1" hose ID crimp end with a 7/8" female JIC connection
• Repairs where a leak-proof MegaCrimp® seal is required
• Shops working with mixed hose constructions that benefit from the “C” insert design
• Inventory reduction when one coupling size can cover multiple compatible hose ODs
• Systems using 1-3/16"-12 female JIC thread specifications
