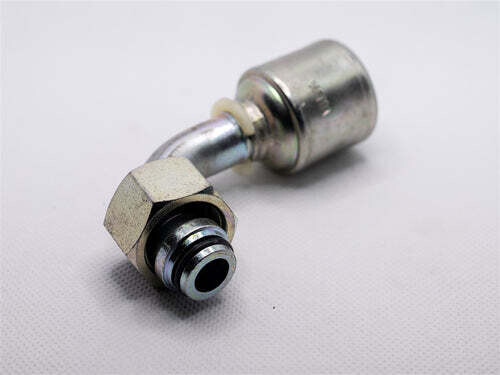

Hydraulic Fitting, 3/4"X1" Female 90 Deg. British Stndrd Pipe

The 12G-16FBSPORX90 Hydraulic Fitting is a 90° female British Standard Pipe (BSP) fitting designed for secure hydraulic hose connections where space is tight and a right-angle routing is needed. Built as part of the MegaCrimp® system, it’s engineered to support a strong, leak-resistant crimped connection, helping simplify hose assembly inventory by accommodating a range of hose constructions and wall thicknesses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-16FBSPORX90
• Product Type: Hydraulic hose fitting / crimp fitting
• Style / Angle: 90° female
• Thread Standard: British Standard Pipe (BSP)
• Hose ID Compatibility: 3/4"
• Fitting Nominal Size: 1"
• Thread Size: 1"-11
• Thread Pitch: 11
• Nut Hex Size: 41 mm
• Overall Length: 4.42 in
• Cutoff Length: 2.41 in
• Drop Length: 2.76 in
• System Note: MegaCrimp® coupling design with internal “C” insert for consistent crimp force distribution and inventory simplification

Ideal For

• Hydraulic hose assemblies needing a 90° female BSP connection
• Tight routing areas where a right-angle fitting reduces hose strain and improves clearance
• Repairs and builds using 3/4" ID hose with 1" BSP connection requirements
• Applications where a crimped, leak-resistant connection is preferred for long-term reliability
