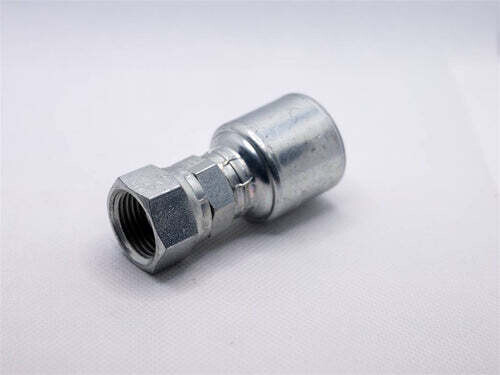

Hydraulic Fitting, 3/4"X1" Female Jic 45 Deg

The 12G-16FJX45 Hydraulic Fitting is a female JIC 45° MegaCrimp® coupling designed to deliver a leak-proof, concentric seal for dependable hydraulic hose assemblies. Its patented MegaCrimp® design uses the internal “C” insert to help accommodate different hose constructions and wall thicknesses, while distributing crimping forces evenly to form a consistent seal—helping simplify inventory by allowing one coupling size to fit a range of hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-16FJX45
• Product Type: Hydraulic hose crimp fitting / coupling
• Series / Style: MegaCrimp®
• Fitting End Type: Female JIC 45°
• Hose ID Compatibility: 3/4"
• Fitting Nominal Size: 1"
• Thread Size: 1-5/16"-12
• Thread Pitch: 12
• Nut Hex Size: 38.1 mm
• Overall Length: 5.24"
• Drop Length: 0.94"
• Cutoff Length: 95" (as provided)
• Seal / Insert Design: Patented “C” insert for even crimp-force distribution and concentric sealing
• Hose Construction Compatibility: Works across different constructions and wall thicknesses, including one- and two-wire hoses

Ideal For

• Building hydraulic hose assemblies needing a female JIC 45° connection
• Applications where a leak-proof crimp seal is critical
• Shops wanting to simplify fitting inventory across multiple hose ODs
• Service trucks and maintenance teams assembling hoses for ag, construction, and industrial hydraulics
• Users who need consistent results across one- and two-wire hose builds
