Hydraulic Fitting, 3/4"X1" Female Jic 90 Deg

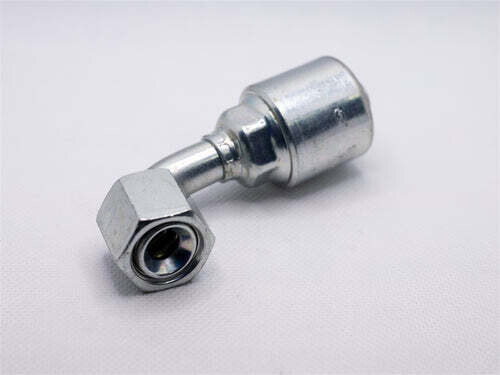

The 12G-16FJX90M Hydraulic Fitting is a 90° female JIC MegaCrimp® hose coupling designed to deliver a leak-resistant crimped connection in tight routing applications. It features the patented “C” insert that helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal, helping simplify inventory across one- and two-wire hose builds.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-16FJX90M
• Product Type: MegaCrimp® hydraulic hose coupling
• Fitting Style: Female JIC 90°
• Hose ID: 3/4 in
• Fitting Nominal Size: 1 in
• Thread Size: 1-5/16"-12
• Thread Pitch: 12
• Length: 4.78 in
• Drop Length: 2.2 in
• Nut Hex Size: 1-1/2 in
• Cutoff Length: 2.77 in
• Seal / Design Feature: Patented “C” insert for concentric, leak-resistant crimp seal
• Hose Compatibility: Fits a range of hose constructions/wall thicknesses; suitable for one- and two-wire hoses

Ideal For

• Hydraulic hose assemblies requiring a 90° female JIC connection
• Tight spaces where a 90-degree fitting improves routing and reduces hose strain
• Shops standardizing on MegaCrimp® couplings to simplify hose inventory
• Hose builds using 3/4" ID hose with a 1" nominal fitting size
• Maintenance and repair work needing reliable, leak-resistant crimped connections
