Hydraulic Fitting, 3/4"X1" Flange 90 Deg

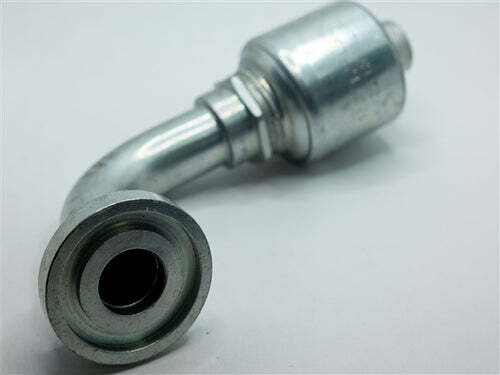

The 12G-16FL90 Hydraulic Fitting (3/4" x 1" Flange) is a 90° flange-style hydraulic hose fitting built for dependable connections where a right-angle turn is needed in tight hydraulic routing. Designed for use with MegaCrimp® coupling technology, it supports a leak-proof crimp seal using the patented “C” insert, which helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—helping simplify inventory by allowing one size to fit multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-16FL90
• Product Type: Hydraulic flange fitting (90°)
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric seal
• Hose ID: 3/4 in
• Flange Nominal Size: 1 in
• Flange Outside Diameter: 1.75 in
• Flange Thickness: 0.32 in
• Overall Length: 4.72 in
• Cutoff Length: 2.71 in
• Drop Length: 2.4 in

Ideal For

• Hydraulic hose assemblies needing a 90° turn with a 1" flange connection
• Applications requiring a consistent, leak-resistant crimp seal
• Shops standardizing on MegaCrimp® to simplify fitting and hose inventory
• Builds using 3/4" ID hose where flange dimensions and drop length matter for fitment
