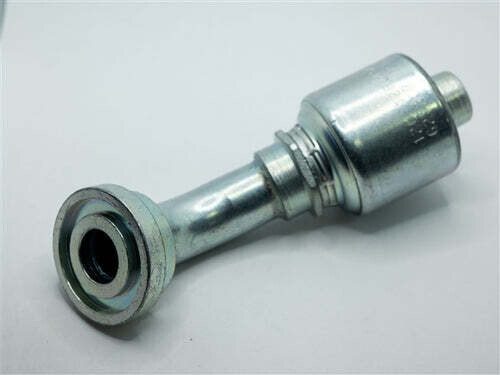

Hydraulic Fitting, 3/4"X3/4" Flange 45 Deg

The 12G-12FL45M Hydraulic Fitting is a 45° flange hydraulic coupling designed for secure, leak-resistant connections in hydraulic hose assemblies where angled routing is needed. Built with the MegaCrimp® system’s patented “C” insert, it helps form a concentric seal by evenly distributing crimping forces while accommodating different hose constructions and wall thicknesses—simplifying inventory by allowing one size to fit multiple hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-12FL45M
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic fitting — 45° flange
• Flange Nominal Size: 3/4 in.
• Hose ID: 3/4 in.
• Flange Outside Diameter: 1.5 in.
• Flange Thickness: 0.27 in.
• Overall Length: 4.82 in.
• Drop Length: 1.02 in.
• Cutoff Length: 2.81 in.
• Seal / Design Feature: Patented “C” insert for even crimp-force distribution and concentric sealing
• Compatibility Benefit: One size accommodates multiple hose ODs on one- and two-wire hoses

Ideal For

• Hydraulic hose assemblies needing a 3/4 in. flange connection with a 45° angle
• Installations where cleaner routing helps reduce hose strain and improve fit-up
• Crimped hose builds requiring consistent sealing and dependable performance
• Shops standardizing fittings across varying hose constructions/wall thicknesses
