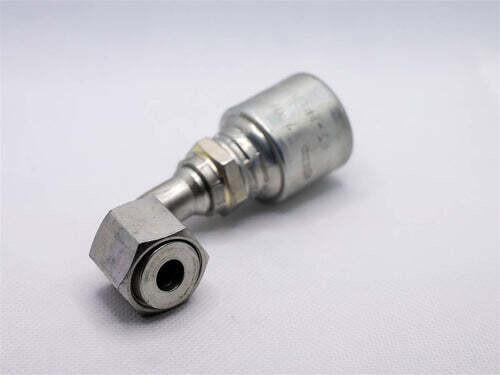

Hydraulic Fitting, 3/4"X5/8" Female Flat Face O-Ring 90 Deg

The 12G-10FFORX90S Hydraulic Fitting (3/4" x 5/8" Female Flat Face O-Ring 90°) is a 90-degree female flat face O-ring hydraulic hose fitting designed for clean, leak-resistant connections in tight routing areas. Built for use with MegaCrimp® hose and coupling systems, it supports reliable crimped assemblies while helping reduce stress on the hose with a compact 90° configuration.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-10FFORX90S
• Product Type: Hydraulic fitting — 90° female flat face O-ring
• Hose ID (Side 1): 3/4 in
• Fitting Nominal Size: 5/8 in
• Thread Size / Pitch (Side 1): 1"-14 (12 TPI)
• Overall Length: 4.09 in
• Drop Length: 1.26 in
• Cutoff Length: 2.09 in
• Nut Hex Size: 30 mm
• System Note: Compatible with MegaCrimp® crimp coupling systems

Ideal For

• Hydraulic hose builds needing a 90° female flat face O-ring connection
• Equipment where minimizing leaks and keeping connections clean is important
• Replacing worn or leaking 90° hose ends on mobile or industrial hydraulics
• Tight hose routing where a right-angle fitting helps prevent kinks and hose strain
