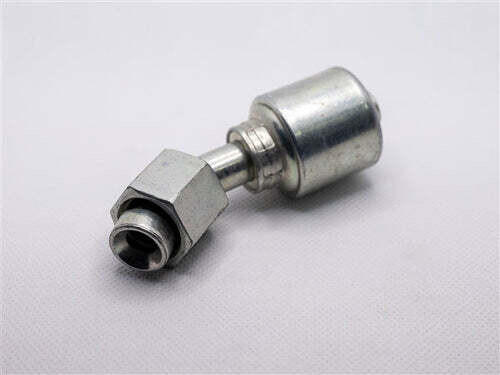

Hydraulic Fitting, 3/4"X5/8" Female Jic 45 Deg

The 12G-10FJX45S Hydraulic Fitting is a 3/4" x 5/8" Female JIC 45° MegaCrimp® coupling designed to deliver a leak-proof, patented seal for dependable hydraulic connections. Its internal “C” insert supports different hose constructions and wall thicknesses, helping create an even distribution of crimping forces for a concentric seal—and simplifying inventory by allowing one size to accommodate multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12G-10FJX45S
• Product Type: Hydraulic crimp coupling / fitting
• Fitting Style / Angle: Female JIC, 45°
• Connection Size: 3/4" x 5/8"
• Hose ID 1: 3/4 in
• Fitting Nominal Size: 5/8 in
• Thread Size 1: 7/8"-14
• Thread Pitch: 14
• Nut Hex Size: 1 in
• Overall Length: 4.57 in
• Cutoff Length: 2.56 in
• Drop Length: 0.75 in
• Design Feature: Patented MegaCrimp® leak-proof seal with internal “C” insert
• Compatibility Benefit: Accommodates varying hose ODs on one- and two-wire hoses

Ideal For

• Hydraulic assemblies needing a 45° Female JIC connection
• Applications where a leak-proof crimp seal is critical
• Shops looking to reduce fitting inventory with broader hose OD compatibility
• Builds using one- or two-wire hydraulic hoses with varying wall thicknesses
