Hydraulic Fitting, 3/8"X1/2" Female Flat Face O-Ring 90Deg

Hydraulic Fitting, 3/8"X1/2" Female Flat Face O-Ring 90Deg

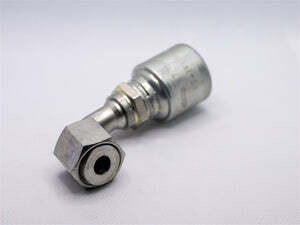

The 6G-8FFORX90S Hydraulic Fitting is a 90° female flat-face O-ring hose-end coupling designed for secure, leak-resistant hydraulic connections. Built for the MegaCrimp® system, it features the patented internal “C” insert that evenly distributes crimping forces to create a concentric seal. This design supports compatibility across different hose constructions and wall thicknesses, helping reduce inventory while maintaining reliable performance on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-8FFORX90S
• Product Type: Hydraulic hose crimp fitting / coupling
• Connection Type: Female flat-face O-ring, 90°
• Hose ID: 3/8"
• Fitting Nominal Size: 1/2"
• Thread Size: 13/16"-16
• Thread Pitch: 16
• Length: 2.87"
• Cutoff Length: 1.78"
• Drop Length: 1.14"
• Nut Hex Size: 24 mm
• Coupling System: MegaCrimp® with patented “C” insert
• Performance Benefit: Even crimp force distribution for a concentric, leak-proof seal
• Compatibility Note: Designed to work across different hose constructions and wall thicknesses; supports one- and two-wire hose applications

Ideal For

• Hydraulic hose assemblies needing a 90° female flat-face O-ring connection
• Systems where leak prevention and clean disconnects are important
• Tight routing situations that benefit from a 90-degree elbow
• Shops standardizing on MegaCrimp® fittings to simplify hose inventory
• One- and two-wire hose builds using 3/8" hose ID fittings
