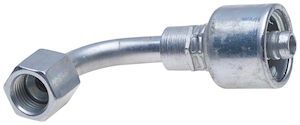

Hydraulic Fitting, 3/8"X1/4" Female Jic 90Deg

The 6G-4FJX90S Hydraulic Fitting is a 90° female JIC hose-end fitting built for reliable, leak-resistant connections in hydraulic systems. Designed as part of the MegaCrimp® coupling system, it uses the patented internal “C” insert to help create a concentric, leak-proof seal by evenly distributing crimping forces. This design supports compatibility across different hose constructions and wall thicknesses, helping simplify inventory since one coupling size can fit multiple hose ODs on both one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-4FJX90S
• Product Type: Hydraulic hose crimp fitting / coupling
• Connection Type: Female JIC 90°
• Hose ID: 3/8"
• Fitting Nominal Size: 1/4"
• Thread Size: 7/16"-20
• Thread Pitch: 20
• Length: 2.6"
• Cutoff Length: 1.5"
• Drop Length: 0.83"
• Nut Hex Size: 14 mm
• Coupling System: MegaCrimp® with patented “C” insert
• Performance Benefit: Even crimp force distribution for a concentric, leak-proof seal
• Compatibility Note: Designed to work across different hose constructions/wall thicknesses; helps reduce inventory across hose ODs for one- and two-wire hoses

Ideal For

• Hydraulic hose assemblies needing a 90° Female JIC connection
• Applications requiring a dependable seal to help reduce leaks and rework
• Shops standardizing on MegaCrimp® fittings to simplify hose-end inventory
• Tight routing situations where a 90-degree elbow reduces hose strain and bend radius
• One- and two-wire hydraulic hose builds using 3/8" hose ID fittings
