Hydraulic Fitting, 3/8"X3/8" Female Jic 45Deg

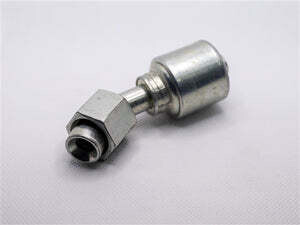

The 6G-6FJX45 Hydraulic Fitting is a 45° crimp-on female JIC hose end designed for secure, leak-resistant hydraulic connections while providing angled routing for tighter installations. Built for 3/8" hose ID and a 3/8" nominal fitting size, it features 9/16"-18 JIC threads and a 45-degree bend to help reduce hose strain and improve line clearance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-6FJX45
• Product Type: Female JIC hydraulic hose fitting (45° crimp end)
• Hose ID: 3/8"
• Fitting Nominal Size: 3/8"
• Thread Size: 9/16"-18
• Thread Pitch: 18
• Overall Length: 2.91"
• Cutoff Length: 1.86"
• Drop Length: 0.43"
• Nut Hex Size: 11/16"

Ideal For

• Building or replacing hydraulic hose assemblies using 3/8" ID hose
• Applications needing a 45° female JIC connection for improved hose routing
• Hydraulic systems requiring 9/16"-18 JIC threads
• Installs where reducing hose bend stress and improving clearance is important
