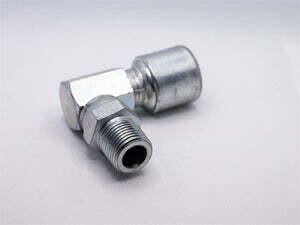

Hydraulic Fitting, 3/8"X3/8" Male Pipe 90 Degree Block

The 6G-6MPX90 Hydraulic Fitting is a 90° male pipe elbow block fitting designed for 3/8" hydraulic hose and piping connections where a compact right-angle turn is needed. Built for dependable routing in tight spaces, it features 3/8"-18 male pipe threads and the dimensional specs needed for proper hose build and installation.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-6MPX90
• Product Type: Hydraulic fitting – 90° male pipe elbow block
• Fitting Nominal Size: 3/8 in
• Hose ID (Hose ID 1): 3/8 in
• Thread Size: 3/8"-18
• Thread Pitch: 18
• Nut Hex Size: 7/8 in
• Stem Hex Size: 3/4 in
• Length: 1.96 in
• Drop Length: 1.76 in
• Cutoff Length: 0.85 in

Ideal For

• Hydraulic hose assemblies needing a 90° turn with 3/8" male pipe threads
• Routing lines in tight equipment bays where straight fittings won’t clear
• Service and replacement builds requiring common 3/8"-18 NPT-style connections
• Applications where consistent fit-up matters using defined hex sizes and cutoff length
