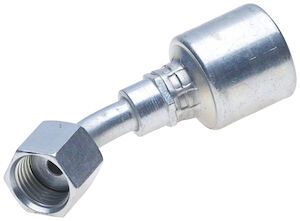

Hydraulic Fitting, 5/8"X3/4" Female Flat Face O-Ring 45 Deg

The 10G-12FFORX45 Hydraulic Fitting is a 45° female flat-face O-ring hose-end coupling built for secure, leak-resistant hydraulic connections while providing an angled routing option to reduce hose strain. Designed for the MegaCrimp® system, it features the patented internal “C” insert that evenly distributes crimping forces to form a concentric seal. This design supports use across different hose constructions and wall thicknesses, helping simplify inventory for one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 10G-12FFORX45
• Product Type: Hydraulic hose crimp fitting / coupling
• Connection Type: Female flat-face O-ring, 45°
• Hose ID: 5/8"
• Fitting Nominal Size: 3/4"
• Thread Size: 1-3/16"-12
• Thread Pitch: 12
• Length: 4.17"
• Drop Length: 0.83"
• Nut Hex Size: 36 mm
• Cutoff Length: 68.4" (as provided)
• Coupling System: MegaCrimp® with patented “C” insert
• Performance Benefit: Even crimp force distribution for a concentric, leak-proof seal
• Compatibility Note: Designed to work across different hose constructions and wall thicknesses; supports one- and two-wire hose applications

Ideal For

• Hydraulic hose assemblies needing a 45° female flat-face O-ring connection
• Routing needs where a 45-degree angle helps reduce bend radius and hose stress
• Systems where leak prevention and clean sealing are important
• Shops standardizing on MegaCrimp® fittings to simplify hose-end inventory
• One- and two-wire hose builds using 5/8" hose ID fittings
