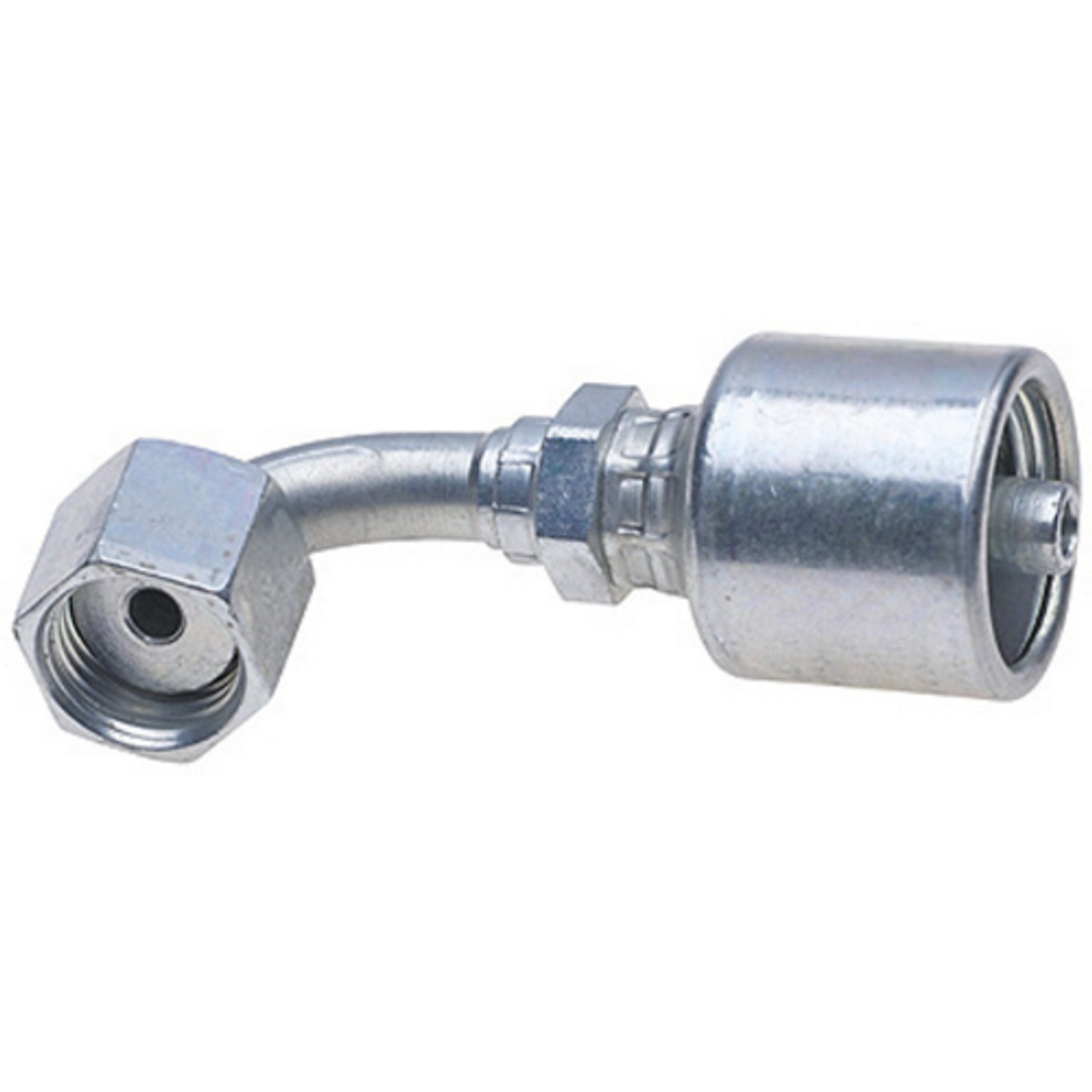

Hydraulic Fitting, 5/8"X3/4" Female Flat Face O-Ring 90 Deg

The 10G-12FFORX90S Hydraulic Fitting is a 90° crimp-on female flat face O-ring hose end designed for clean, leak-resistant hydraulic connections where a flat-face seal is preferred. Built for 5/8" hose ID and a 3/4" nominal fitting size, it features 1-3/16"-12 threads and a 90-degree configuration to help route hoses in tight spaces.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 10G-12FFORX90S
• Product Type: Female flat face O-ring hydraulic hose fitting (90° crimp end)
• Hose ID: 5/8"
• Fitting Nominal Size: 3/4"
• Thread Size: 1-3/16"-12
• Thread Pitch: 12
• Overall Length: 3.79"
• Cutoff Length: 2.31"
• Drop Length: 1.89"
• Nut Hex Size: 36 mm

Ideal For

• Building or replacing hydraulic hose assemblies using 5/8" ID hose
• Applications needing a 90° female flat face O-ring connection for compact routing
• Hydraulic systems requiring 1-3/16"-12 threads with a flat-face sealing interface
• Equipment repairs where leak-resistant flat-face fittings are preferred
