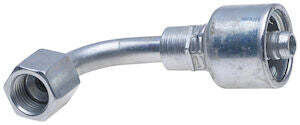

Hydraulic Fitting, 5/8"X5/8" Female Jic 90 Deg

The 10G-10FJX90M MegaCrimp® hydraulic coupling is a 5/8" female JIC 90° fitting built for secure, leak-resistant hydraulic hose connections in tough operating environments. Using Eaton’s patented MegaCrimp® “C” insert, it supports multiple hose constructions and wall thicknesses while helping create a consistent, concentric crimp seal through even force distribution. The 90-degree design improves hose routing in tight spaces and helps reduce strain at the connection point for longer service life.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 10G-10FJX90M
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic hose coupling / fitting
• Fitting Style: Female JIC, 90-degree
• Fitting Nominal Size: 5/8 in
• Hose ID Compatibility: 5/8 in
• Thread Size: 7/8"-14
• Thread Pitch: 14
• Nut Hex Size: 27 mm
• Overall Length: 3.68 in
• Drop Length: 1.85 in
• Cutoff Length: 2.2 in
• Design Feature: Patented MegaCrimp® “C” insert for even crimp force distribution
• Compatibility: Designed to accommodate multiple hose constructions and wall thicknesses (one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies requiring a 5/8" female JIC 90° connection
• Equipment where tight routing calls for a right-angle fitting to prevent kinks
• Applications needing a reliable, leak-resistant crimped seal
• Shops looking to reduce fitting SKU count with broad hose compatibility
