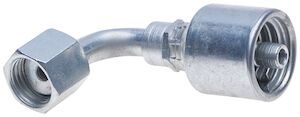

Hydraulic Fitting, 5/8"X5/8" Flat Face O-Ring 90 Deg.

The 10G-10FFORX90M Hydraulic Fitting is a 90° flat-face O-ring coupling built for reliable, leak-resistant hydraulic hose assemblies while helping streamline hose-end inventory. Its patented MegaCrimp® design uses an internal “C” insert to support multiple hose constructions and wall thicknesses, distributing crimp forces evenly to create a concentric, consistent seal on both one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 10G-10FFORX90M
• Product Type: Hydraulic hose coupling / crimp fitting
• End Type / Angle: Flat Face O-Ring, 90°
• Hose ID (Hose End): 5/8 in
• Fitting Nominal Size: 5/8 in
• Thread Size: 1"-14
• Thread Pitch: 14
• Nut Hex Size: 30 mm
• Overall Length: 3.65 in
• Cutoff Length: 2.18 in
• Drop Length: 1.85 in
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric seal
• Compatibility Advantage: One size accommodates multiple hose ODs across different constructions/wall thicknesses
• Hose Construction Support: Works on one- and two-wire hoses

Ideal For

• Hydraulic hose builds needing a 90° flat-face O-ring connection
• Systems where leak resistance and a consistent crimp seal are critical
• Tight routing situations that benefit from a 90° drop
• Shops looking to reduce coupling inventory across varying hose OD constructions
• One- and two-wire hose assemblies requiring dependable crimp performance
