Hydraulic Log Splitter Valve, 30Gpm

Hydraulic Log Splitter Valve, 30Gpm

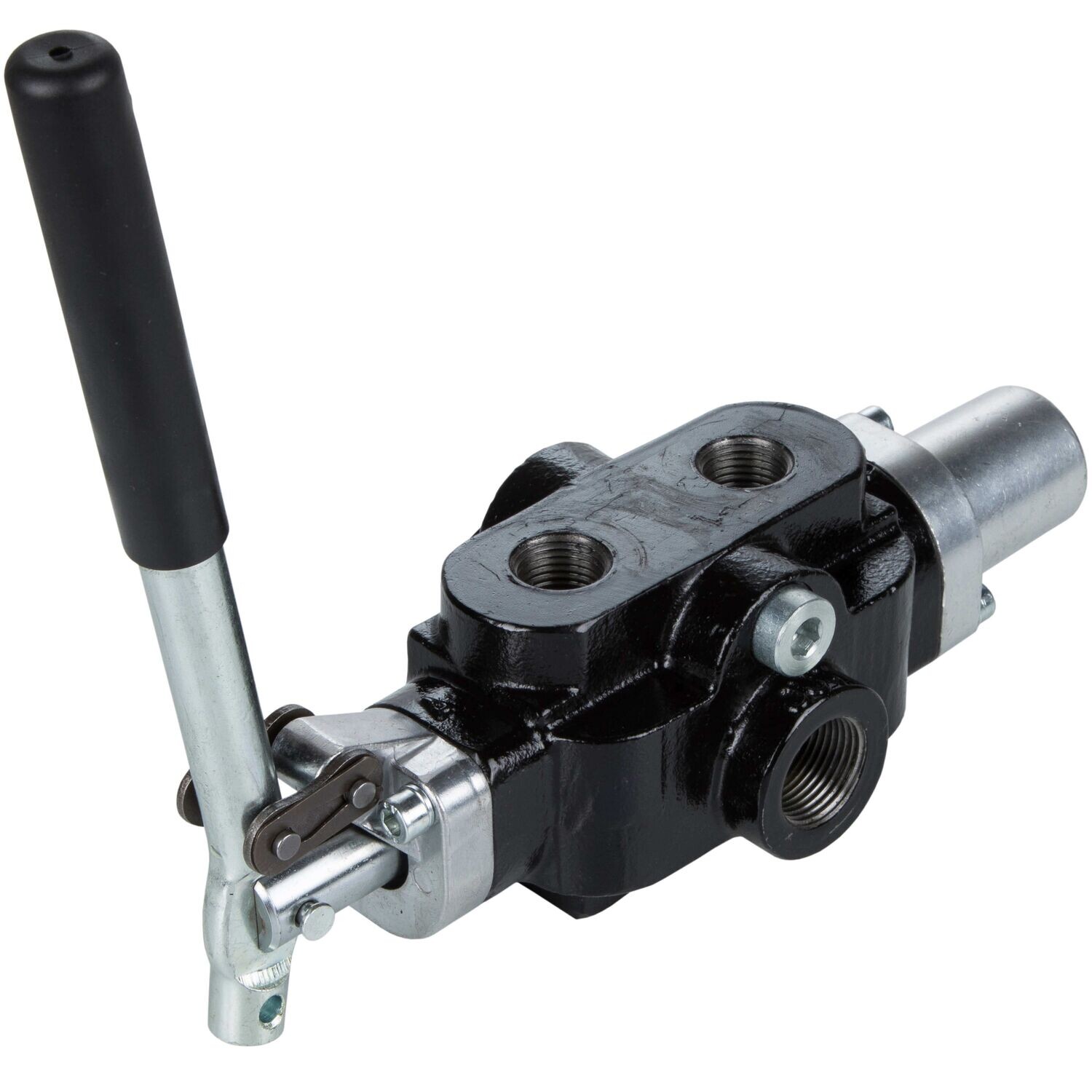

Prince hydraulic control valve built for operating double-acting cylinders, commonly used on hydraulic log splitters and similar equipment. This open-center, single-spool valve features spring-centered control on extend and a pressure-release operated auto-detent on the return stroke, providing consistent retract operation with automatic detent release for convenient splitting cycles. The handle can be repositioned to suit different mounting orientations, and detailed instructions are included.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 9-12875
• Brand / Series: Prince / WLS-800
• Product Type: Hydraulic control valve (log splitter valve)
• Size / Capacity: 10" x 3-3/8" x 3"
• Material: Not specified
• Color / Finish: Not specified
• Technical Specs: Open center; 1 spool; 30 GPM max flow; 3265 PSI max pressure; relief valve adjustable (set at 2250 PSI); detent release pressure 700 PSI; shipping weight 10 lbs.
• Compatibility / Fitment: For double-acting cylinder operation; common log splitter valve application
• Certifications / Ratings: Not specified
• Included Components: Detailed instructions
• Notes: Ports: In/Out 3/4" NPT; Work ports 1/2" NPT. Mounting: four 3/8"-16 tapped holes in base on 1" x 2-5/8" centers. Work Port A (retract) closest to handle; Work Port B (extend) farthest from handle. Handle can be positioned for different valve orientations. Spool 1: double-acting cylinder, spring center extend / auto detent retract.
