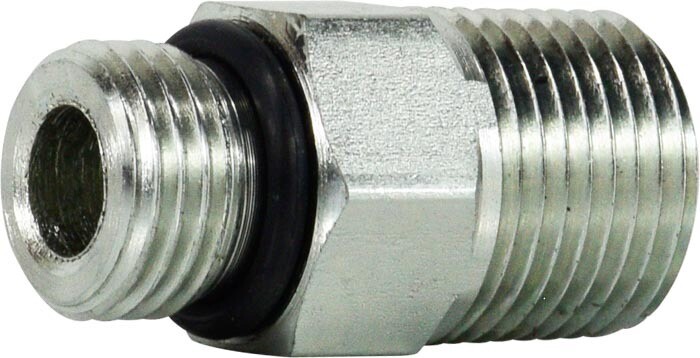

Hydraulic Male Adaptor, 1/2"MB X 3/8"MP

Hydraulic Male Adaptor, 1/2"MB X 3/8"MP

The 6401X0806 Hydraulic Male Adapter connects 1/2 in Male SAE O-Ring Boss (ORB) ports to 3/8 in Male NPT pipe threads, allowing hydraulic systems to transition between ORB and tapered pipe thread connections. The straight adapter design keeps fluid flow direct while providing a secure, leak-resistant connection between different hydraulic thread standards. Constructed from durable carbon steel and rated for working pressures up to 3000 PSI, this adapter is well suited for agricultural, industrial, and mobile hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6401X0806
• Product Type: Hydraulic male adapter
• Fitting Shape: Straight
• Adapter Configuration: Male to Male
• End 1 Type: Male SAE O-Ring Boss (ORB)
• End 1 Size: SAE 8
• End 1 Thread: 3/4–16 ORB
• End 2 Type: Male NPT
• End 2 Size: 3/8 in NPT
• End 2 Thread: 3/8–18 NPT (tapered)
• Connection Type: ORB to NPT
• Material: Carbon Steel
• Maximum Working Pressure: 3000 PSI

Ideal For

• Connecting ORB hydraulic ports to NPT threaded components
• Hydraulic plumbing and system conversions
• Agricultural, construction, and industrial hydraulic equipment
• Systems operating at pressures up to 3000 PSI
• Situations where a proper adapter keeps hydraulic plumbing straightforward instead of stacking fittings like a small metal tower
