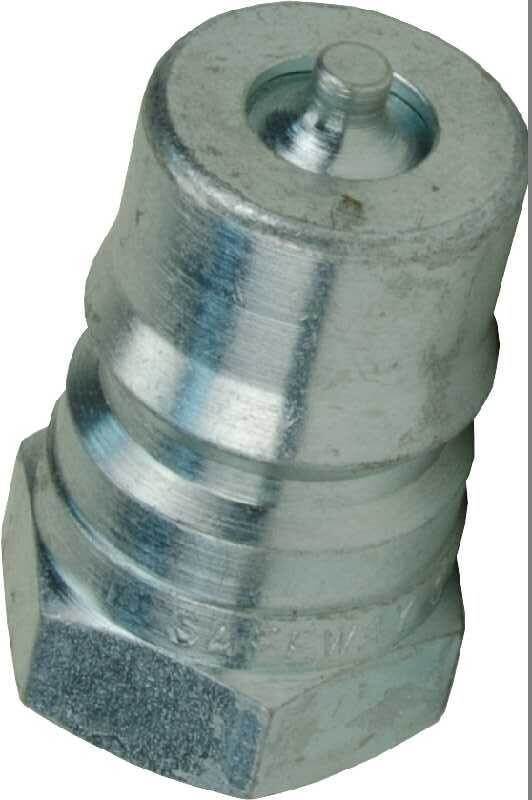

Hydraulic Tip, 3/4"Body X 3/4"FPT

Hydraulic Tip, 3/4"Body X 3/4"FPT

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 3/4″ Body

Thread Size: 3/4″ NPT Thread, Poppet Valve

This 3/4″ coupler connects to its female equivalent.

Benefits:

• Body: Carbon Steel
• Finishing: ZN-Fe (CRIII) Plating
• Seals: NBR standard seals
• Spring Material: 304 Stainless Steel
• Radial Locking Balls
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings

Features:

• 3600 PSI Rating
• 14,500 PSI Burst Rating (Coupled)
• 24 GPM Max Flow
• 12 Nominal Flow Rate
• Male Face Diameter 1.24” (31.5mm)
• Male Length: 2.28″ (58mm)
• Hex: 1.341” (34mm)

Interchangeable with:
