Hydraulic Union Elbow Adaptor, 3/4"MFFOR X 3/4"MPT

Hydraulic Union Elbow Adaptor, 3/4"MFFOR X 3/4"MPT

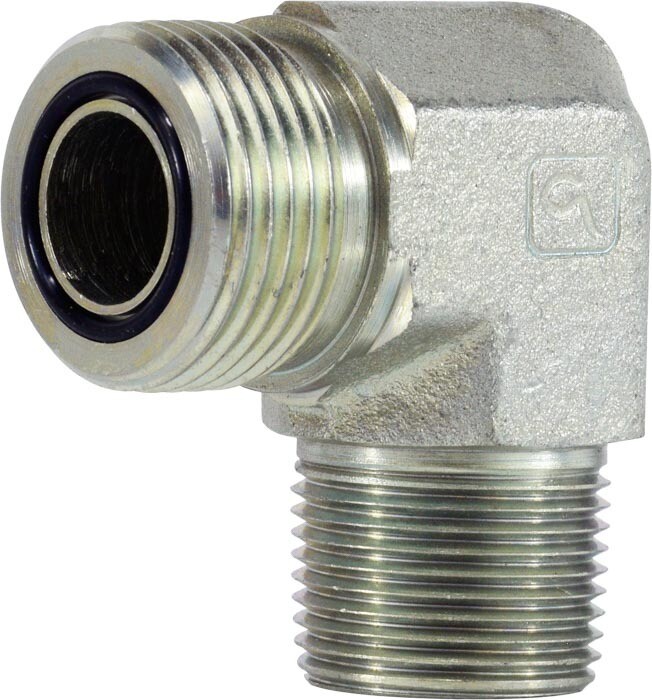

The FS2501X1212 Hydraulic Union Elbow Adaptor is a 90° OFS x Male Pipe fitting engineered for high-pressure hydraulic systems. Featuring a 3/4" Male O-Ring Face Seal (MFFOR) on one end and a 3/4" Male NPTF pipe thread on the other, this forged carbon steel elbow provides secure, leak-resistant connections in demanding applications. Built to SAE J1453 standards and rated for 4,000 PSI working pressure, it delivers reliable performance where hydraulic integrity is critical.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FS2501X1212
• Product Type: Hydraulic Union Elbow Adaptor
• Configuration: 90° OFS Male x Male NPTF Pipe
• End 1: 3/4" Male O-Ring Face Seal (1-3/16 - 12 Thread)
• End 2: 3/4" Male NPTF Pipe (3/4 - 14 Thread)
• O-Ring: Black Buna-N, 90 Durometer
• Material: Forged Carbon Steel
• Plating: CR6-Free Clear Zinc Trivalent (RoHS Compliant)
• Standard: SAE J1453 (#520401)
• Working Pressure: 4,000 PSI (4:1 Safety Factor)
• Burst Pressure: 16,000 PSI
• Quality Process: PCC World-Class Quality Process

Ideal For

• High-pressure hydraulic systems requiring 90° routing
• Equipment using O-Ring Face Seal (OFS) connections
• Agricultural and industrial hydraulic repairs
• Applications needing leak-resistant, vibration-resistant fittings
• Installations where 4,000 PSI is working pressure — not wishful thinking
