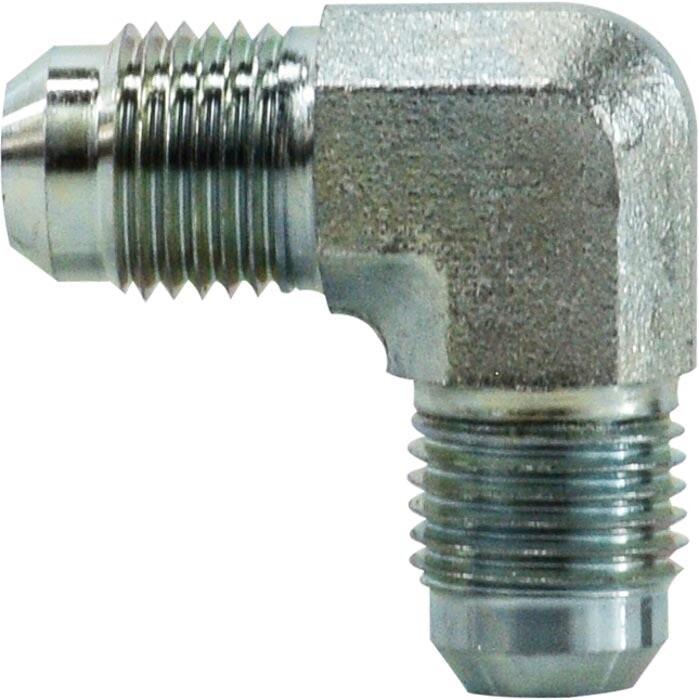

Hydraulic Union Elbow Adaptor, 3/4"MJ X 5/8"MJ

Hydraulic Union Elbow Adaptor, 3/4"MJ X 5/8"MJ

A dependable 90° hydraulic union elbow adaptor designed to connect two male JIC flare fittings of different sizes while neatly redirecting hydraulic lines. Built from durable carbon steel and rated for working pressures up to 3500 PSI, this fitting provides a secure, leak-resistant connection for demanding hydraulic systems. The 3/4" MJIC x 5/8" MJIC configuration allows you to adapt between JIC 12 and JIC 10 lines while turning the flow path 90 degrees—perfect when straight fittings just won’t cooperate with the plumbing layout.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2500X1210
• Product Type: Hydraulic union elbow adaptor
• Fitting Shape: 90° elbow
• End 1 Type: Male JIC
• End 1 Size: JIC 12 (1-1/16"-12, 37° flare)
• End 2 Type: Male JIC
• End 2 Size: JIC 10 (7/8"-14, 37° flare)
• Connection Size: 3/4" MJIC x 5/8" MJIC
• Material: Carbon steel
• Working Pressure: Up to 3500 PSI
• Connection Style: 37° JIC flare fittings for reliable metal-to-metal sealing
• Design Benefit: Allows hydraulic line size transition while redirecting flow 90°

Ideal For

• Hydraulic systems requiring a JIC 12 to JIC 10 size transition
• Equipment plumbing where a 90° turn prevents hose strain or tight bends
• Agricultural, construction, and industrial hydraulic systems
• Repairs or builds where strong carbon steel fittings and high pressure ratings are essential
• Situations where the hydraulic line needs to turn the corner without complaining about it
