Hydraulic Union Elbow Adaptor, 3/8"MJ X 1/4"MJ

Hydraulic Union Elbow Adaptor, 3/8"MJ X 1/4"MJ

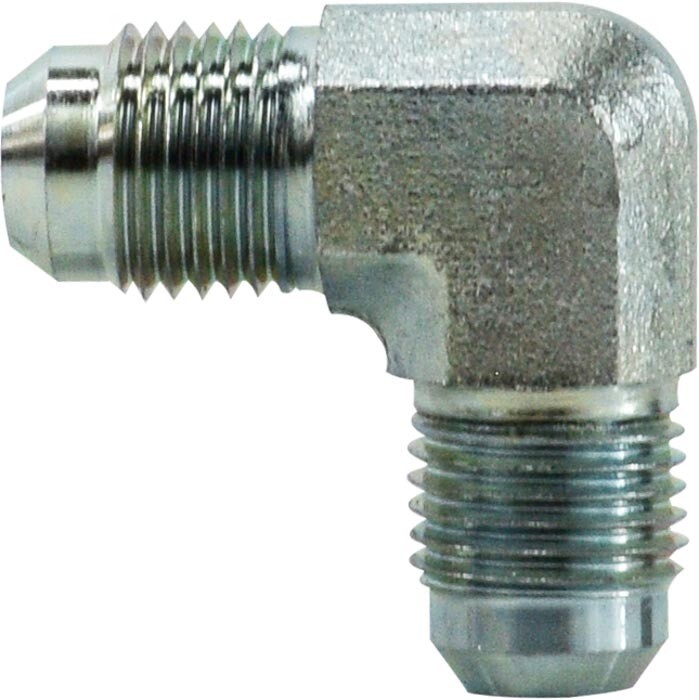

The 2500X0604 Hydraulic Union Elbow Adaptor is a 90° hydraulic fitting designed to connect a 3/8" male JIC flare to a 1/4" male JIC flare, allowing a compact directional change between hydraulic hose connections. Constructed from durable carbon steel and rated for up to 5,000 PSI, this adaptor provides reliable performance in high-pressure hydraulic systems. The 90-degree elbow design helps route hoses efficiently in tight spaces—because a well-placed elbow fitting can save a lot of hose twisting and installation headaches.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2500X0604
• Product Type: Hydraulic union elbow adaptor
• Fitting Shape: 90° elbow
• End 1 Type: Male JIC
• End 1 Size: JIC 6 — 9/16"-18 (37° flare)
• End 2 Type: Male JIC
• End 2 Size: JIC 4 — 7/16"-20 (37° flare)
• Connection Size Description: 3/8" MJ × 1/4" MJ
• Material: Carbon steel
• Working Pressure: Up to 5,000 PSI
• Design Purpose: Connects two JIC flare fittings while redirecting the hydraulic line
• Construction Benefit: Steel body provides durability in high-pressure hydraulic systems

Ideal For

• Hydraulic systems requiring JIC to JIC connections
• Routing hydraulic hoses with a 90° directional change
• Agricultural, construction, and industrial equipment
• Hydraulic line installations and repairs
• Situations where a compact elbow adaptor keeps hoses properly aligned instead of forcing awkward bends into the system
