Hypro 3-Diaphragm Pump

Hypro 3-Diaphragm Pump

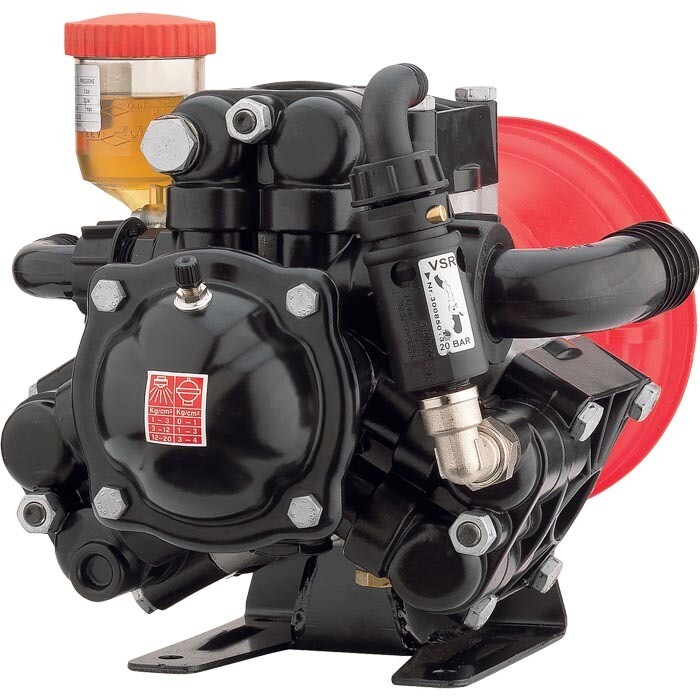

The 9910D135 Hypro 3-Diaphragm Pump is a high-capacity ag sprayer pump built for dependable performance in demanding, chemical-handling applications. Delivering up to 35 GPM and 290 PSI, and driven by a 1-3/8" 6-spline male PTO shaft, it’s a strong fit for low-pressure spraying work like insecticides, liquid fertilizer, and other chemicals. With a 3-diaphragm semi-hydraulic design and an anodized aluminum housing, it’s made to keep your spraying operation moving—so you can cover acres instead of babysitting the pump.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 9910D135
• Brand / Series: Hypro D135
• Product Type: 3-diaphragm pump
• Max Flow: 35 GPM
• Max Pressure: 290 PSI
• Drive Shaft: 1-3/8" 6-spline male PTO
• Port Sizes: 1-1/2" HB inlet, 1" HB outlet
• Shaft Rotation: CW and CCW
• Diaphragms: 3 (semi-hydraulic), Desmopan standard; Buna available
• Housing Material: Anodized aluminum
• Recommended Control Unit: 3300-0087 or 3300-0088 (remote mount)
• Max Fluid Temperature: 140°F
• Weight: 38 lbs

Ideal For

• Agricultural spraying for insecticides, liquid fertilizer, and other chemicals
• PTO-driven sprayers needing up to 35 GPM flow capacity
• Applications requiring up to 290 PSI while maintaining diaphragm-pump reliability
• Operators wanting flexibility with CW/CCW rotation
• Sprayer builds using Hypro control units 3300-0087 or 3300-0088 for regulation and control
