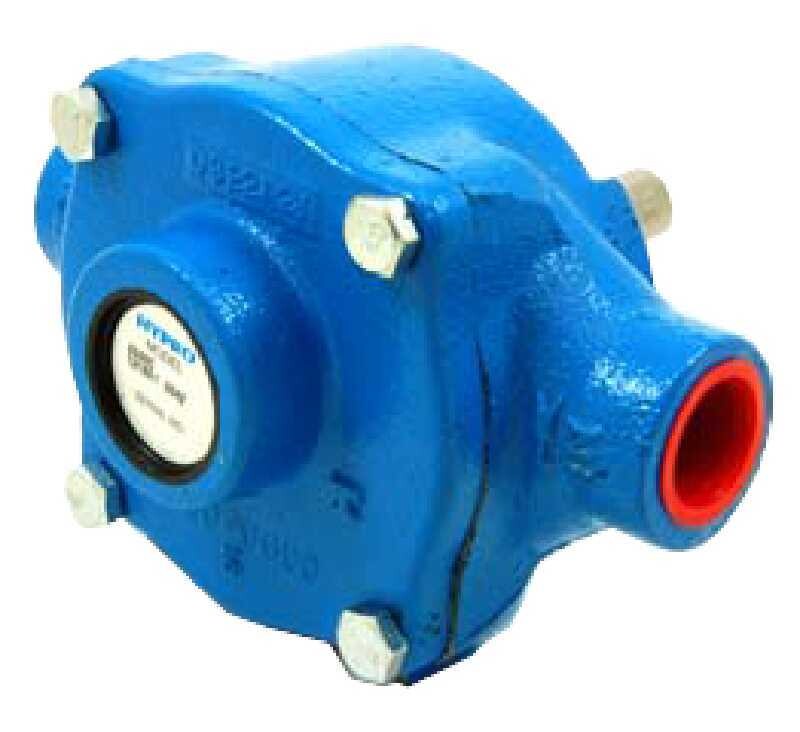

Hypro 6500C 6-Roller Pump

The Hypro 6500C 6-roller pump is a rugged, low-torque roller pump built for dependable spraying of pesticides, herbicides, and liquid fertilizers on small to medium commercial operations. With corrosion-resistant construction, a cast iron housing/rotor, and a stainless steel shaft with Viton® seals, it delivers strong flow and pressure for consistent coverage while remaining user-friendly for day-to-day spraying.

Country of Origin
Varies by production batch

Key Features / Specifications

• Brand/Series: Hypro 6500 Series
• Model: 6500C
• Pump type: Roller pump
• Max flow: 22 GPM
• Max pressure: 300 PSI
• Max RPM: 1200
• Flow ratings:
  • 9.7 GPM (36.7 LPM) @ 540 RPM
  • 18.2 GPM (68.9 LPM) @ 1000 RPM
  • 21.8 GPM (82.5 LPM) @ 1200 RPM
• Ports: 3/4" FNPT (inlet/outlet)
• Shaft rotation: CW
• Housing: Cast iron
• Rotor: Cast iron
• Rollers: 6 rollers (Super rollers standard; Poly and Teflon® available)
• Shaft: 5/8" solid stainless steel
• Seals: Viton® standard (Buna available)
• Max fluid temperature: 140°F
• Weight: 9 lb

Ideal For

• Spraying pesticides, herbicides, and liquid fertilizers with consistent coverage
• Small to medium commercial farms needing strong flow and up to 300 PSI capability
• PTO or engine-driven sprayer setups requiring a CW-rotation roller pump
• Operators wanting a durable, corrosion-resistant pump with serviceable roller components
