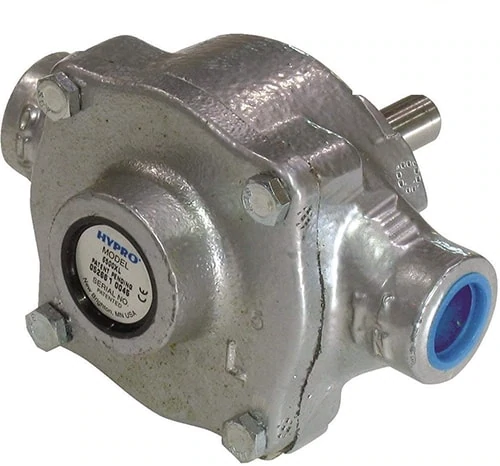

Hypro 6500XL 6-Roller Silvercast Pump

Pentair Hypro 6500 Series 6-Roller Pumps

The Pentair Hypro 6500XL 6500 Series 6-Roller Pump is a high-pressure, chemical-resistant pump built for demanding agricultural spraying applications, delivering up to 21.8 GPM and 300 PSI with reliable, consistent output. Designed with Viton® seals and super rollers, it offers excellent durability and chemical compatibility, while multiple housing material options—Cast Iron, Ni-Resist, and Silvercast (XL)—allow you to match the pump to your specific application. When uptime matters and chemicals are hard on equipment, this pump is built to last longer than most.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6500XL (6500 Series)
• Product Type: Roller pump (solid shaft)
• Flow Rate: Up to 21.8 GPM (82.5 LPM)
• Max Pressure: 300 PSI (20.7 bar)
• Max Speed: 1200 RPM
• Pump Design: 6-roller configuration
• Seal Material: Viton® for superior chemical resistance
• Rollers: Super rollers standard (Poly and PTFE options available)
• Port Size: 3/4" x 3/4" NPT
• Shaft Type: Solid shaft (5/8" / 15.9 mm)
• Rotation: Counterclockwise standard (clockwise available)
• Housing Options:
  • 6500C: Cast Iron
  • 6500N: Ni-Resist
  • 6500XL: Silvercast for maximum durability and chemical resistance

Performance Comparison

• Cast Iron: ~140 hours in herbicide use
• Ni-Resist: ~332 hours
• Silver Series XL: 1000+ hours while maintaining performance

Ideal For

• Agricultural spraying applications involving herbicides, pesticides, and fertilizers
• Users needing high pressure with moderate flow rates
• Operations requiring enhanced chemical resistance and long service life
• PTO or motor-driven systems where consistent, reliable pump output is critical
• Anyone who prefers replacing chemicals—not pumps nearly as often
