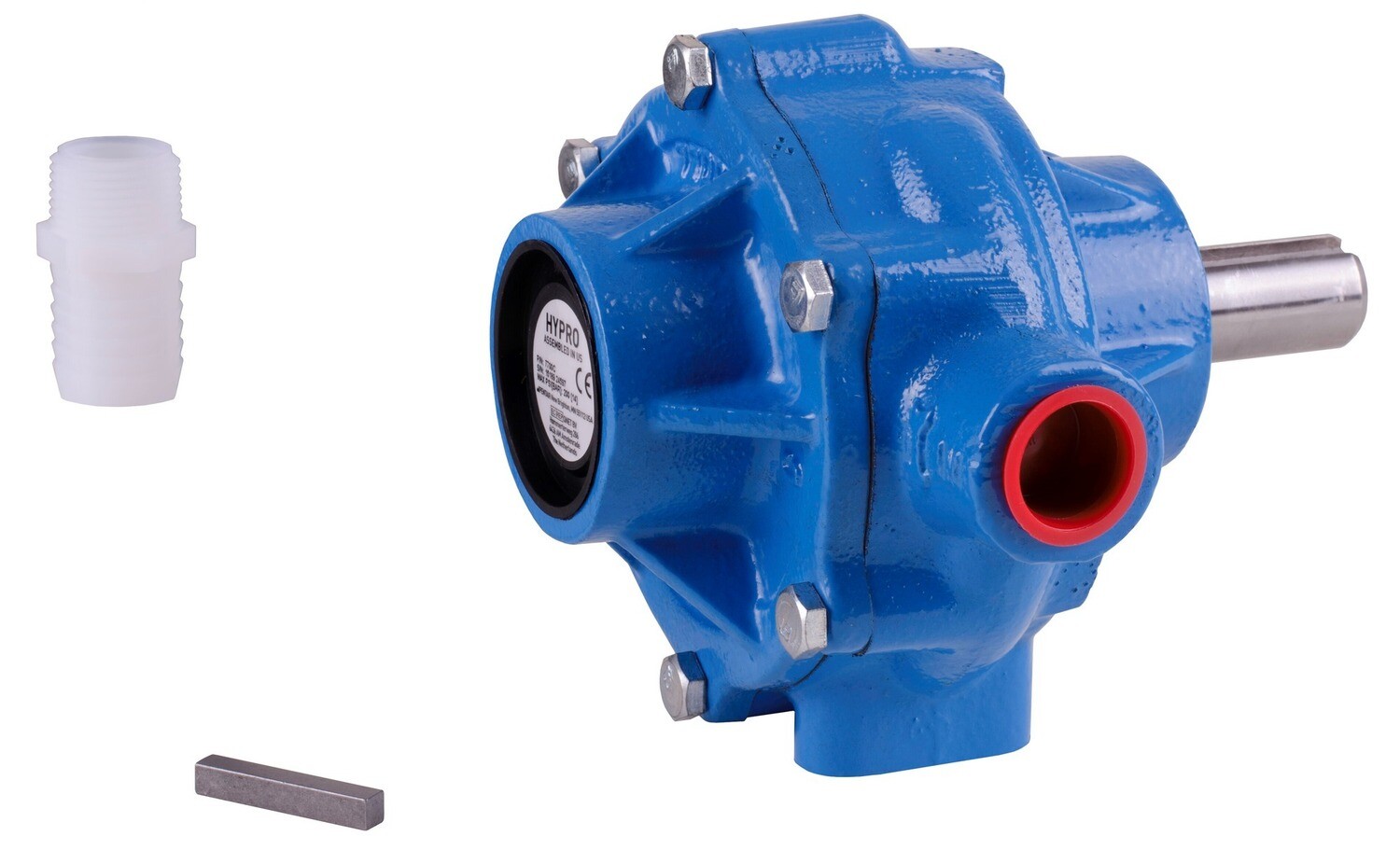

The 7700 series includes 7700C, 7700N, and 7700XL models and uses 7 super rollers for strong, smooth pumping performance. The standard shaft rotation is counter-clockwise when viewing the shaft end (clockwise rotation versions are available). For proper and safe PTO operation, Hypro recommends using the PTO torque arm kit 3430-0540.
Country of Origin: Varies by production batch
Key Features / Specifications
- Model: 7700C
- Pump type: 7-roller PTO pump (solid shaft roller pump)
- Max flow: 22.1 GPM (83.7 LPM)
- Max pressure: 200 PSI (13.8 bar)
- Drive type: PTO
- Max RPM: 800
- Ports: 3/4" NPT
- Rollers: 7 (Super Rollers standard)
- Optional materials include Poly (T3) and Teflon® (T2)
- Rotor materials: Cast Iron, Ni-Resist, or Silvercast (varies by configuration)
- Shaft rotation: Counter-clockwise when looking at shaft end (clockwise available)
- Recommended accessory: PTO torque arm kit PTA
Ideal For
- Agricultural spraying and liquid application systems
- PTO-driven sprayers requiring high flow and moderate pressure
- Fertilizer, herbicide, and water transfer applications (compatible fluids)
- Operators needing a rugged roller pump with reliable performance
