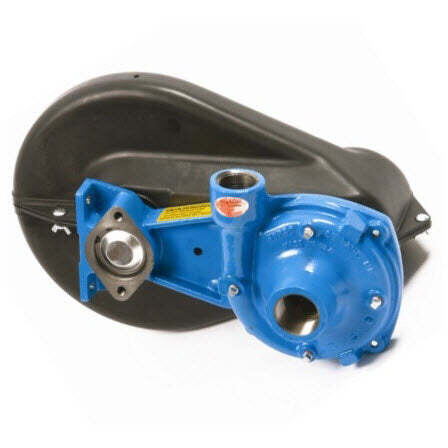

Hypro Belt Drive Centrifugal Pump, 1" Shaft 1-1/4"Inlet 1" Outlet, 76GPM 95PSI

Hypro - 9402C540S - 9402C-540S Centrifugal Pump

The Hypro 9402C-540S Centrifugal Pump is a high-capacity, belt-driven workhorse built for demanding spraying and liquid transfer jobs. Delivering up to 76 GPM and 95 PSI, this pump is designed to handle everything from liquid fertilizers to wettable powder slurries without breaking a sweat. With a rugged cast iron housing, Viton seals, and a spring-loaded belt tensioner, it’s built for durability, reliability, and long days in the field—because spraying season doesn’t wait for downtime.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 9402C-540S
• Brand / Manufacturer: Hypro
• Pump Series: 9400 Belt Drive
• Product Type: Centrifugal pump (belt-driven)
• Max Flow Rate: 76 GPM
• Max Pressure: 95 PSI
• Max Speed: 600 RPM
• Inlet Size: 1-1/4" NPT
• Outlet Size: 1" NPT
• Shaft: 1" solid shaft
• Rotation: CCW (counterclockwise)
• Drive System: 12-groove belt with spring-loaded tensioner
• Housing Material: Cast iron
• Impeller Material: Nylon (cast iron models)
• Gasket / Seal Material: Viton
• Max Temperature: 140°F
• Chemical Compatibility: Suitable for fertilizers, herbicides, and wettable powder slurries
• Durability: Designed for high-capacity, continuous-duty applications

Ideal For

• Field spraying operations handling fertilizers, herbicides, and chemical mixes
• Transfer applications like filling nurse tanks or moving large volumes of liquid
• Watering seed beds and irrigation support tasks
• Operators needing a belt-driven pump setup with consistent performance
• Anyone tackling high-volume spraying jobs who prefers equipment that works as hard as they do—and doesn’t complain about it
