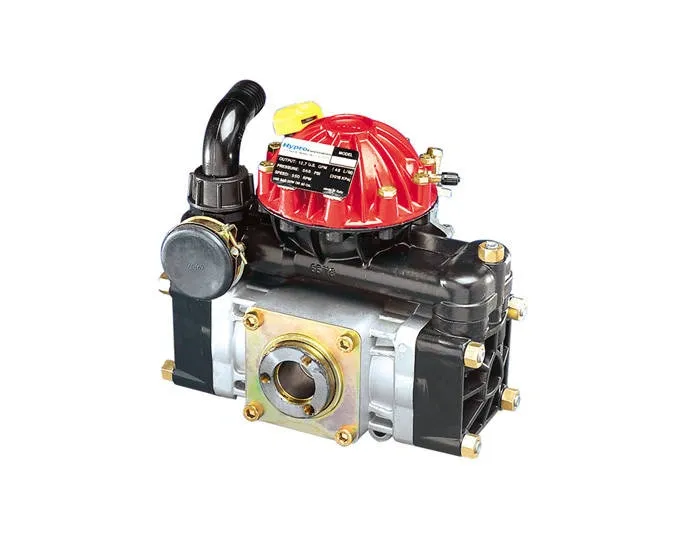

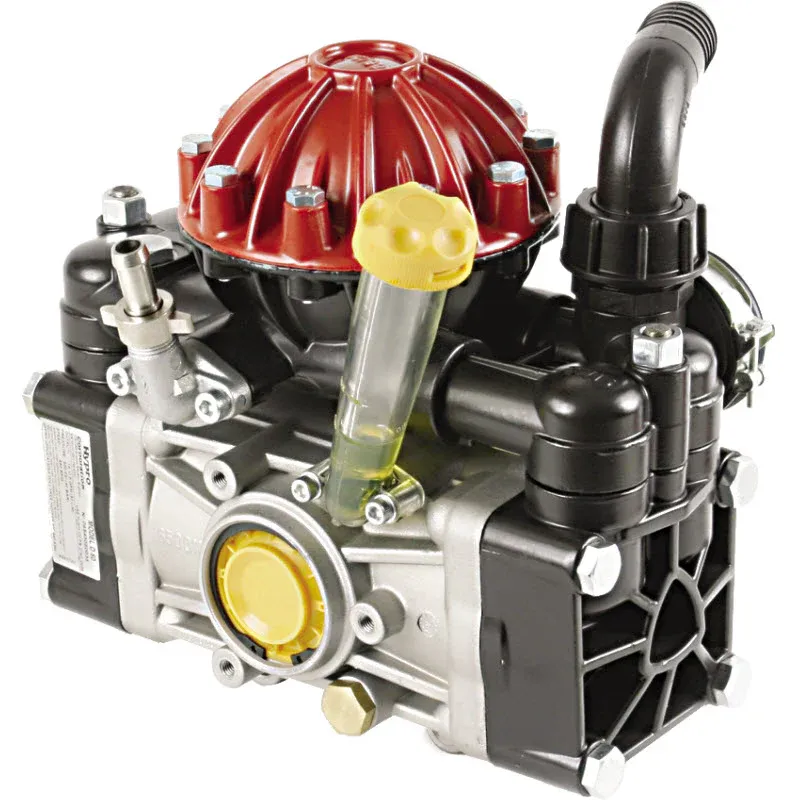

Hypro Diaphragm Pump, 17GPM, 580PSI

Hypro Diaphragm Pump, 17GPM, 580PSI

The Hypro 9910D50 Diaphragm Pump is a rugged, medium-pressure pump built for handling tough spraying jobs and demanding chemicals without constant maintenance headaches. Designed with a full-hydraulic diaphragm system, it delivers up to 580 PSI while maintaining smooth, consistent flow—perfect for herbicides, pesticides, and liquid fertilizers that don’t always play nice with standard pumps. With low wear operation and a built-in pulsation dampener, it keeps your sprayer running steady instead of shaking itself apart.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 9910D50
• Brand / Manufacturer: Hypro
• Product Type: Medium-pressure diaphragm pump
• Flow Rate: Up to 14 GPM (53 LPM)
• Max Pressure: 580 PSI (40 bar)
• Max Speed: 550 RPM
• Max Fluid Temperature: 140°F (60°C)
• Diaphragm System: 2 full-hydraulic diaphragms
• Pump Design: Low-wear, low-maintenance operation
• Housing: Epoxy-coated for chemical resistance
• Ports: 1-1/4" hose barb inlet, 1/2" hose barb outlet
• Shaft Configuration: Flanged (compatible with multiple drive options)
• Rotation: CW and CCW capable
• Drive Compatibility: Supports 1-3/8" splined (male/female), 1" solid shaft, or gear reduction drives
• Included Feature: Pulsation dampener for smoother flow
• Weight: 35 lbs

Ideal For

• Spraying herbicides, pesticides, and liquid fertilizers
• Handling abrasive or hard-to-manage fluids where centrifugal pumps fall short
• Small to mid-size sprayers needing consistent pressure and output
• Operators looking for durable, low-maintenance pumping systems
• Anyone who prefers their pump to deliver pressure—not surprises halfway through a spray job
