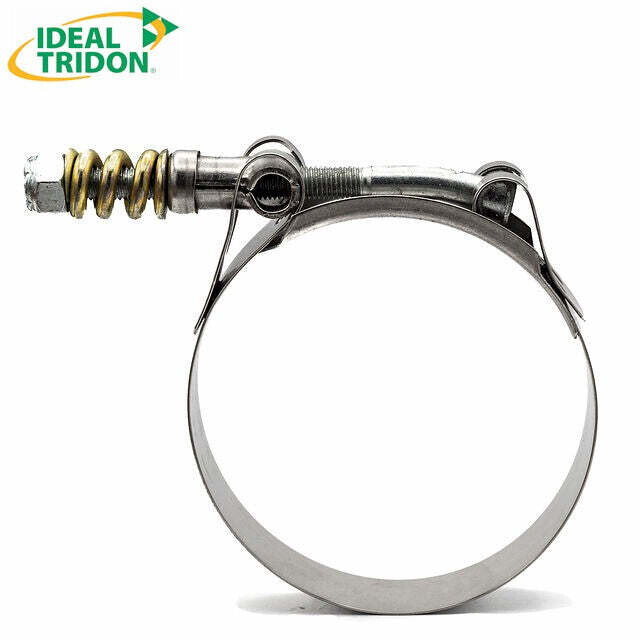

Ideal-Tridon Spring Loaded T-Bolt #475 Hose Clamp, 4-3/4" to 5-1/16" Range

Ideal-Tridon Spring Loaded T-Bolt #475 Hose Clamp, 4-3/4" to 5-1/16" Range

The 30030-0475 Ideal-Tridon Spring Loaded T-Bolt #475 Hose Clamp is a heavy-duty constant-tension clamp engineered to deliver uniform sealing pressure in high-vibration, large-diameter applications. Featuring a spring-loaded T-bolt assembly and a 3/4" wide stainless steel band, this clamp maintains consistent clamping force as components expand and contract with temperature changes—because hoses should stay sealed, not slowly work themselves loose.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 30030-0475
• Brand: Ideal-Tridon
• Series: #475 Spring Loaded T-Bolt Clamp
• Clamp Type: Spring-loaded T-bolt (constant tension)
• Clamping Range: 4-3/4" to 5-1/16"
• Band Width: 3/4"
• Band Material: Stainless steel
• Construction: Welded design for durability
• Tension System: Spring-loaded assembly for uniform sealing pressure
• Duty Rating: Available in standard spring and heavy-duty configurations
• OEM Options: Custom designs available for volume applications

Ideal For

• Heavy trucks and commercial vehicle systems
• Industrial machinery with high vibration
• Off-road and agricultural equipment
• Irrigation systems and large-diameter hose connections
• Applications requiring reliable, constant tension performance
