Implement Pto Yoke, 12-Series X 1-3/8"

Implement Pto Yoke, 12-Series X 1-3/8"

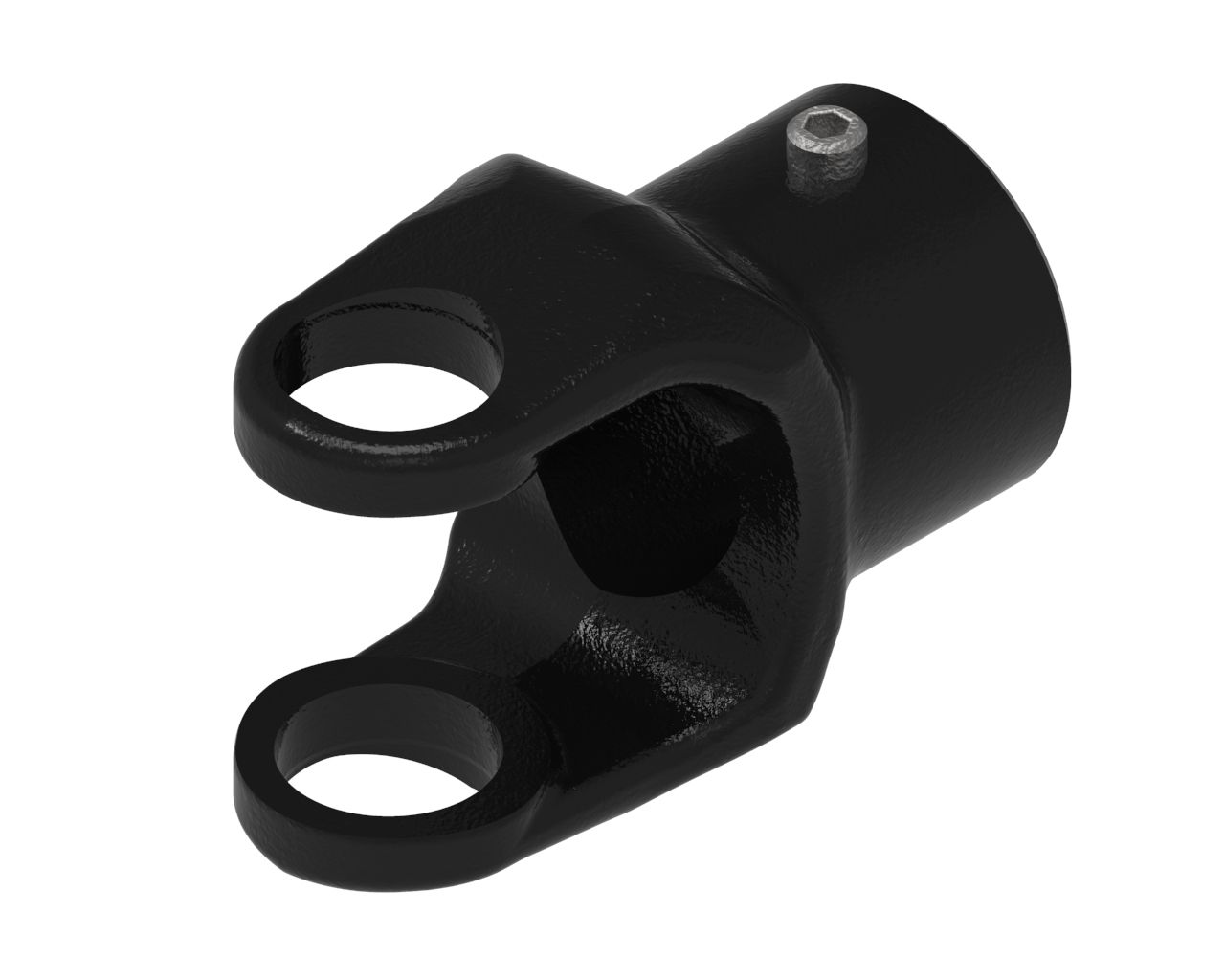

The 800-1222 Implement PTO Yoke is a Weasler implement-end driveline yoke designed to provide the final connection between a PTO driveline and the machine/implement. Built for 12-series drivelines, it features a 1-3/8" round bore with keyway and a set-screw connection for secure mounting on compatible implement shafts. With rated power capacity for common PTO speeds, it’s a dependable option for repairing or assembling implement PTO drivelines.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-1222
• Product Type: Implement PTO yoke
• Series: 12-Series
• Bore: 1.37 in (35 mm)
• Bore Style: Round with keyway
• Keyway Size: 0.31 in (8 mm)
• Connection Type: Set screw
• Set Screw Size: M14 × 14
• Power Rating @ 1000 RPM: 40 HP (30 kW)
• Power Rating @ 540 RPM: 26 HP (19 kW)
• Overall Length: 3.50 in (89 mm)
• Height: 3.00 in (76 mm)
• Width: 2.16 in (55 mm)
• Weight: 1.44 lb (1 kg)
• Shipping Dimensions: 4.3" L × 3" H × 2.16" W
• Shipping Volume: 27.86 in³ (457 cm³)
• Shipping Weight: 1.44 lb (1 kg)

Ideal For

• Replacing an implement-end yoke on 12-series PTO drivelines
• Implements using a 1-3/8" round shaft with keyway
• PTO driveline repairs needing a set-screw style yoke connection
• Agricultural equipment operating at 540 or 1000 RPM PTO speeds
• Maintenance and rebuilds where correct bore and keyway fit are required
