Implement Pto Yoke, 14-Series X 1-1/4"

Implement Pto Yoke, 14-Series X 1-1/4"

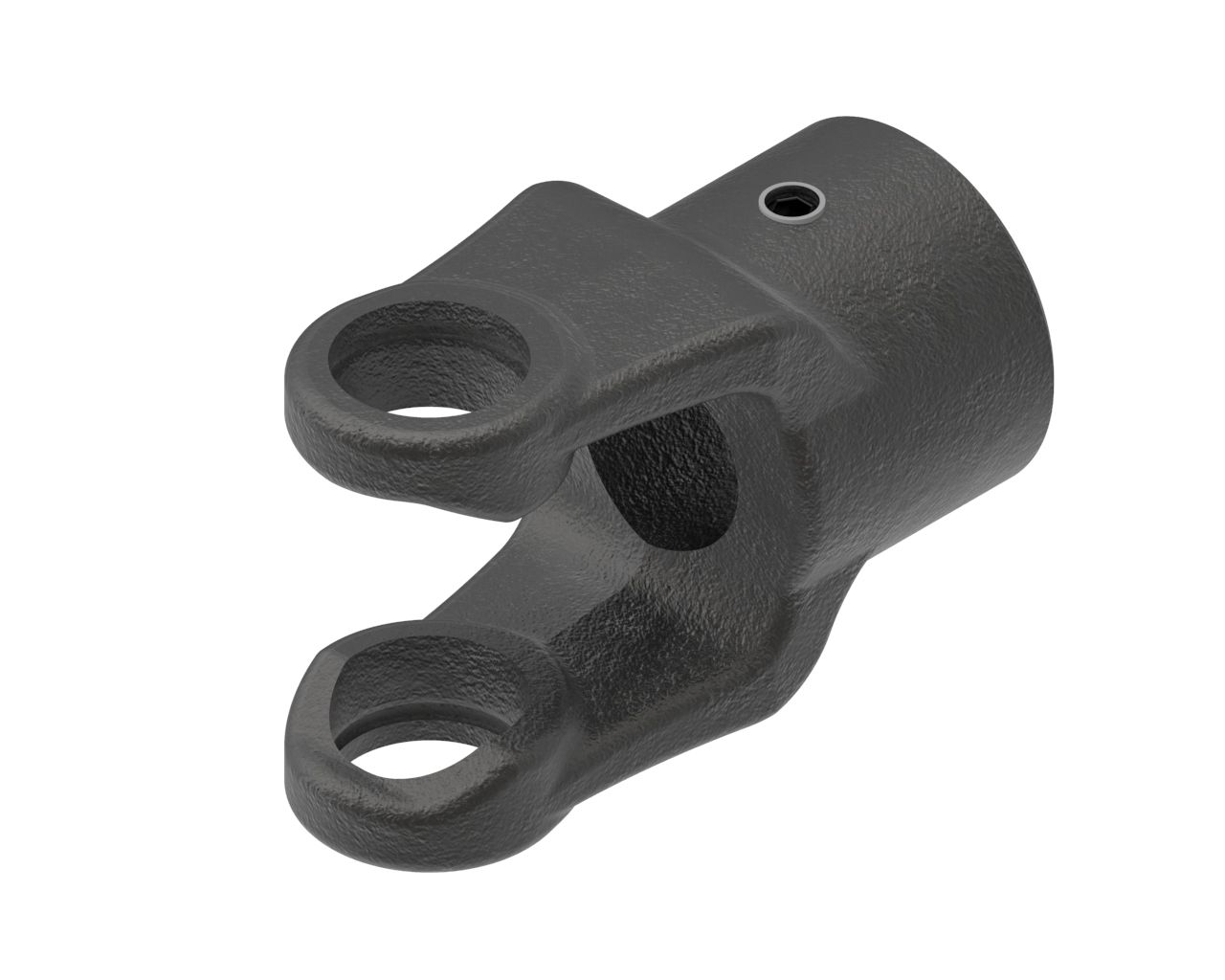

The 800-1420 Implement PTO Yoke (14-Series x 1-1/4") is the final connection point between a PTO driveline and the implement, designed to provide a secure, serviceable fit at the machine end of the shaft. This Weasler 14-Series yoke features a 1.25" round bore with keyway and a set-screw connection, and is rated for up to 38 HP at 540 RPM or 58 HP at 1000 RPM for dependable power transfer in common implement driveline applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-1420
• Brand: Weasler
• Product Type: Implement PTO yoke
• Series: 14-Series
• Bore Size: 1.25 in. (32 mm)
• Bore Style: Round with keyway
• Keyway Size: 0.25 in. (6 mm)
• Connection Type: Set screw
• Set Screw Size: 3/8-16
• HP Rating @ 540 RPM: 38 HP (28 kW)
• HP Rating @ 1000 RPM: 58 HP (43 kW)
• Overall Length: 3.88 in. (99 mm)
• Height: 3.38 in. (86 mm)
• Width: 2.31 in. (59 mm)
• Weight: 2.64 lb (1 kg)
• Shipping Dimensions: 4.7" L x 3.38" H x 2.31" W (12 cm x 9 cm x 6 cm)
• Shipping Volume: 36.70 in³ (601 cm³)

Ideal For

• Replacing worn or damaged implement-end yokes on 14-Series PTO drivelines
• Implements needing a 1-1/4" round bore with keyway connection
• Applications preferring a set-screw retained yoke design
• Power transfer setups within 38 HP @ 540 RPM or 58 HP @ 1000 RPM ratings
