Implement Pto Yoke, 14-Series X 1-3/8"

Implement Pto Yoke, 14-Series X 1-3/8"

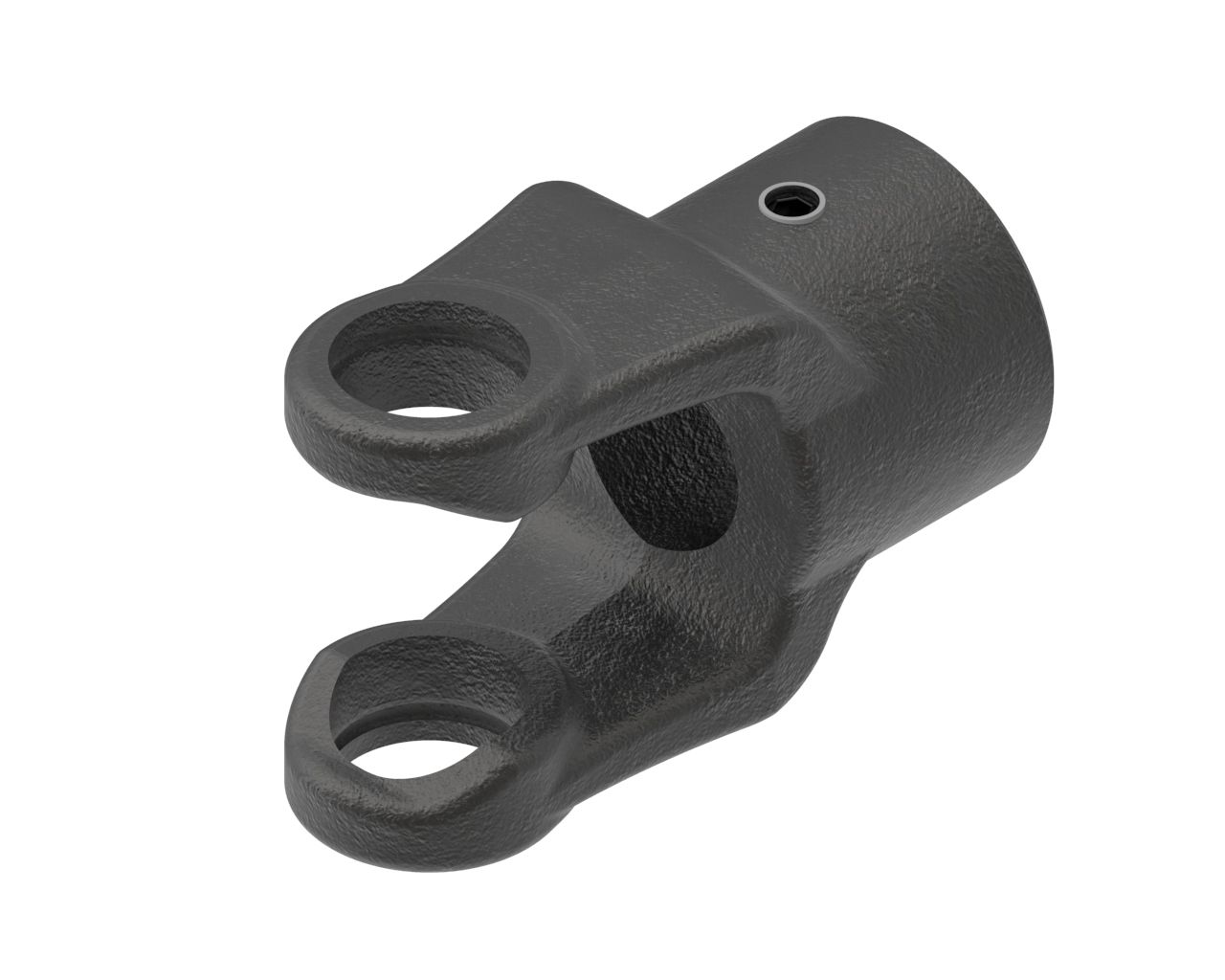

The 800-1422 Implement PTO Yoke is a 14-Series implement-end yoke designed as the final connection between the PTO driveline and the attached implement. Featuring a 1-3/8" round bore with keyway and a set-screw connection, it delivers reliable power transfer for agricultural equipment operating within rated horsepower limits. This yoke supports common implement mounting needs while maintaining compatibility across standard PTO driveline configurations.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-1422
• Product Type: Implement PTO yoke
• Series / Size: 14-Series
• Bore Size: 1-3/8 in (35 mm)
• Bore Style: Round with keyway
• Connection Type: Set screw
• Set Screw Size: 3/8-16
• Keyway Size: 0.31 in (8 mm)
• Rated Power @ 540 RPM: 38 HP (28 kW)
• Rated Power @ 1000 RPM: 58 HP (43 kW)
• Overall Length: 3.88 in (99 mm)
• Height: 3.38 in (86 mm)
• Width: 2.31 in (59 mm)
• Weight: 2.38 lb (1 kg)
• Shipping Dimensions: 4.7" L x 3.38" H x 2.31" W (12 cm x 9 cm x 6 cm)
• Shipping Volume: 36.70 in³ (601 cm³)

Ideal For

• PTO drivelines requiring a 14-Series implement yoke
• Implements using a 1-3/8" round shaft with keyway
• Agricultural equipment operating within 38 HP @ 540 RPM or 58 HP @ 1000 RPM
• Repairs or replacements where a set-screw style connection is preferred
• Farm and field applications needing a dependable implement-end PTO connection
