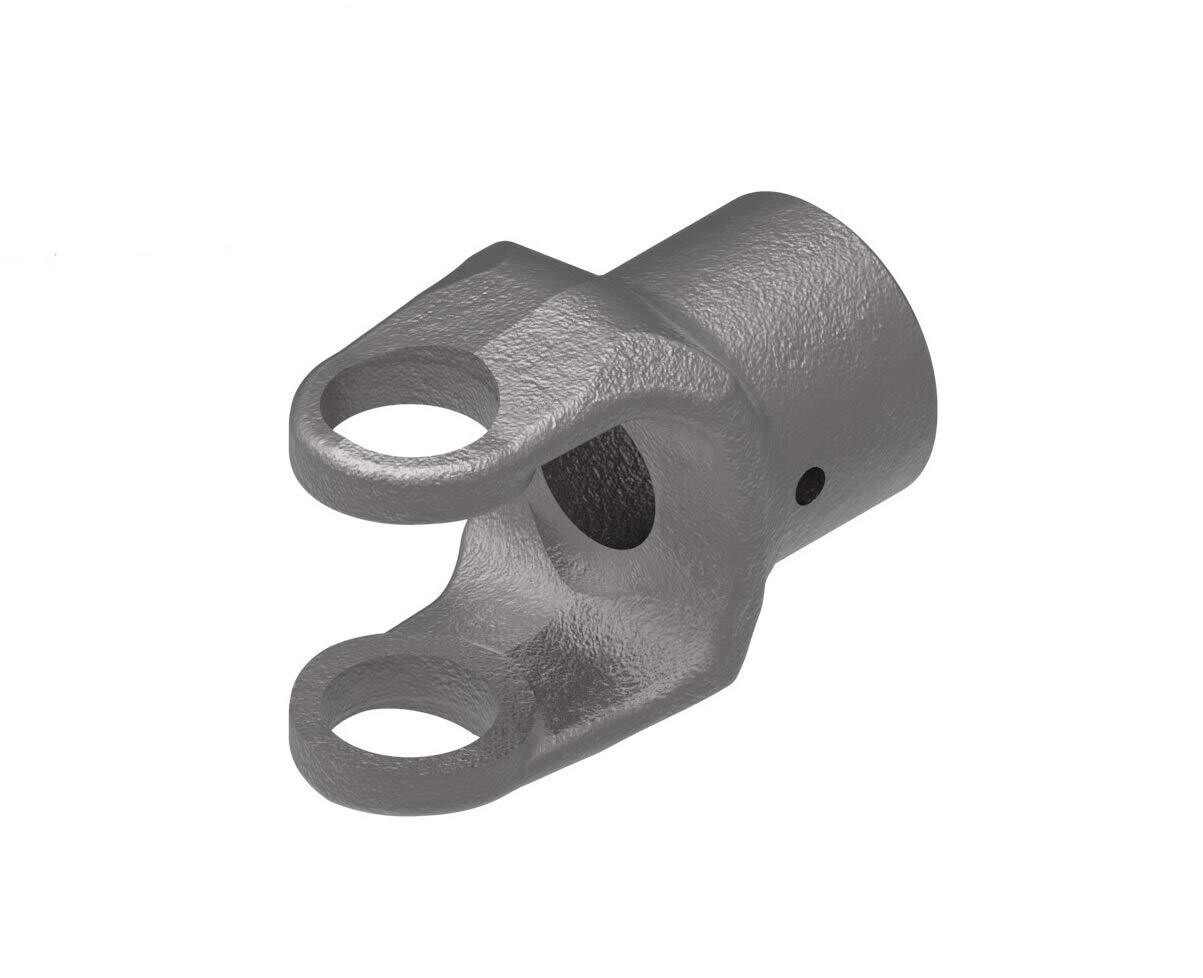

Implement Pto Yoke, 14-Series X 1-3/8" w/Bolt Hole

Implement Pto Yoke, 14-Series X 1-3/8" w/Bolt Hole

The 802-1422 Implement PTO Yoke is a Weasler shear pin yoke engineered for a precise fit and robust service in demanding implement driveline conditions. Its compact overload-protection design uses a through-bolt shear pin that disconnects the power source from the drivetrain during overload events, helping prevent damaging torque spikes and heat generation. After an overload, the operator simply replaces the bolt to return the machine to service.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 802-1422
• Brand: Weasler
• Product Type: Implement PTO yoke / shear pin yoke
• Series: 14-Series
• Bore 1 Size: 1.37" (1-3/8") (35 mm)
• Bore Type: Round
• Connection Type: Pin (shear pin / bolt hole)
• Pin Hole Size: 0.25" (6 mm)
• Shear Bolt: (1) 1/4" Grade 8
• HP Rating @ 540 RPM: 38 HP (28 kW)
• HP Rating @ 1000 RPM: 58 HP (43 kW)
• Torque Rating: 11000 (as provided)
• Overall Length: 3.88" (99 mm)
• Height: 3.38" (86 mm)
• Width: 2.31" (59 mm)
• Weight: 2.40 lb (1 kg)
• Shipping Dimensions: 4.7" L × 3.38" H × 2.31" W (12 cm L × 9 cm H × 6 cm W)
• Shipping Volume: 36.70 in³ (601 cm³)
• Shipping Weight: 2.40 lb (1 kg)

Ideal For

• PTO drivelines needing implement overload protection with a shear bolt design
• Applications where avoiding torque spikes and heat buildup helps prevent damage
• Operators wanting minimal maintenance and a repeatable overload disengagement setting
• Equipment that benefits from smooth disengaged operation after a shear event
• Quick field service situations where replacing a 1/4" Grade 8 shear bolt gets you running again
