Implement Pto Yoke, 14-Series X 1" Square

Implement Pto Yoke, 14-Series X 1" Square

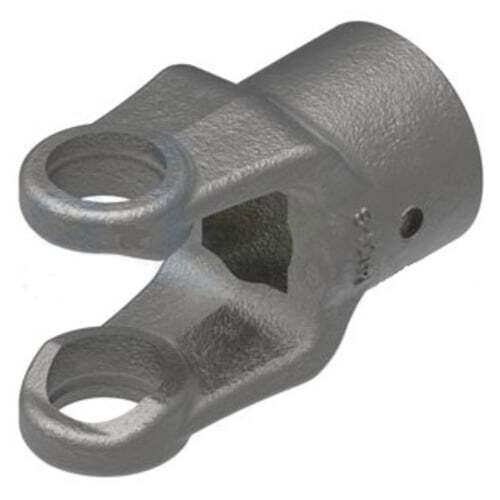

The 804-1416 Implement PTO Yoke is a Weasler 14-Series implement yoke designed as the final connection point between a PTO driveline and the attached machine or implement. Featuring a 1" square bore with a set screw connection, it provides a secure fit on compatible square PTO shafts while supporting dependable power transfer for common agricultural applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 804-1416
• Brand / Series: Weasler 14-Series
• Product Type: Implement PTO yoke
• Bore 1: 1.00" (25 mm)
• Bore Profile: 1" square
• Connection 1: Set screw
• Set Screw Size: 3/8-16
• HP @ 540 RPM: 38 HP (28 kW)
• HP @ 1000 RPM: 58 HP (43 kW)
• Dimensions (L x W x H): 3.88" x 2.31" x 3.38" (99 mm x 59 mm x 86 mm)
• Shipping Dimensions (L x W x H): 4.7" x 2.31" x 3.38" (12 cm x 6 cm x 9 cm)
• Shipping Volume: 36.70 in³ (601 cm³)
• Weight / Shipping Weight: 2.62 lb (1 kg, as provided)

Ideal For

• Connecting a PTO driveline to an implement using a 1" square shaft interface
• Replacing a worn or damaged Weasler 14-Series implement yoke
• PTO setups needing a set screw (3/8-16) style retention method
• Applications operating up to 38 HP @ 540 RPM or 58 HP @ 1000 RPM within driveline limits
