Implement Pto Yoke, 44-Series X 1-1/2"

Implement Pto Yoke, 44-Series X 1-1/2"

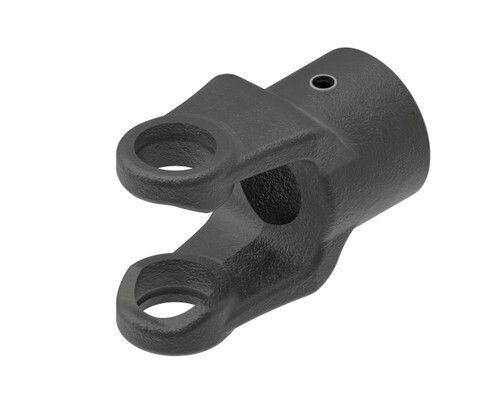

The 800-4424 Implement PTO Yoke is a Weasler 44-Series end yoke that serves as the final connection between a PTO driveline and the implement. Designed with a 1-1/2" round bore with keyway and a set screw connection, it provides a secure interface for transferring power reliably. Built for demanding PTO applications, it carries strong horsepower ratings at both common PTO speeds and is available in the durable, service-friendly configuration many implements use.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-4424
• Brand: Weasler
• Product Type: Implement PTO yoke (end yoke)
• Series: 44-Series
• Bore: 1.50 in. (38 mm) — Round with keyway
• Keyway Size: 0.38 in. (10 mm)
• Connection Type: Set screw
• Set Screw Size: 3/8"-16
• HP Rating @ 1000 RPM: 158 HP (118 kW)
• HP Rating @ 540 RPM: 103 HP (77 kW)
• Overall Length: 4.63 in. (118 mm)
• Height: 4.50 in. (114 mm)
• Width: 2.50 in. (64 mm)
• Weight / Shipping Weight: 4.44 lb (2 kg)
• Shipping Dimensions: 5.57" L × 4.5" H × 2.5" W (approx. 14 cm × 11 cm × 6 cm)
• Shipping Volume: 62.66 in³ (1027 cm³)

Ideal For

• Replacing an implement-end yoke on Weasler 44-Series PTO drivelines
• Implements using a 1-1/2" round keyed shaft connection
• Applications needing a secure set screw style yoke attachment
• PTO systems operating at 540 or 1000 RPM requiring high horsepower capability
• Routine driveline repairs to restore safe, dependable PTO power transfer
