Implement Pto Yoke, 44-Series X 1-3/4"

Implement Pto Yoke, 44-Series X 1-3/4"

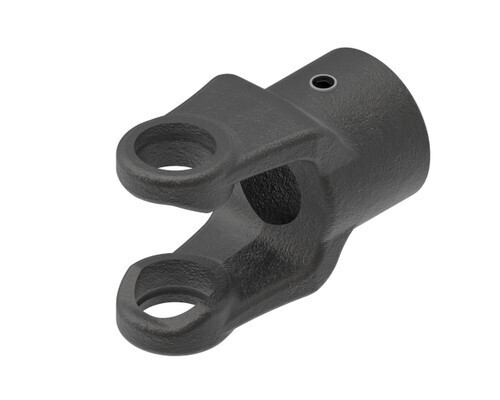

The 800-4428 Implement PTO Yoke is a Weasler 44-Series implement yoke that serves as the final connection point between the PTO driveline and the implement. Built with a 1-3/4" (44 mm) round bore with keyway and a set screw connection, it provides a secure, serviceable fit for a wide range of implement driveline setups while supporting strong power transfer ratings for demanding PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-4428
• Brand / Series: Weasler 44-Series
• Product Type: Implement PTO yoke
• Bore: 1.75" (44 mm) — Round with keyway
• Connection: Set screw
• Keyway: 0.38" (10 mm)
• Set Screw Size: 3/8-16
• Power Rating: 158 HP @ 1000 RPM / 103 HP @ 540 RPM (118 kW / 77 kW)
• Overall Length: 4.63" (118 mm)
• Height: 4.50" (114 mm)
• Width: 2.50" (64 mm)
• Weight: 5.22 lb (2 kg)
• Shipping Dimensions: 5.57" L × 4.50" H × 2.50" W (14 cm × 11 cm × 6 cm)
• Shipping Volume: 62.66 in³ (1027 cm³)

Ideal For

• Replacing an implement-end yoke on Weasler 44-Series PTO drivelines
• Implements needing a 1-3/4" round bore with keyway connection
• Setups that use a set screw retention method (3/8-16)
• PTO applications requiring higher power capacity (up to 158 HP @ 1000 RPM)
