Implement Pto Yoke, 55-Series X 1-1/2"

Implement Pto Yoke, 55-Series X 1-1/2"

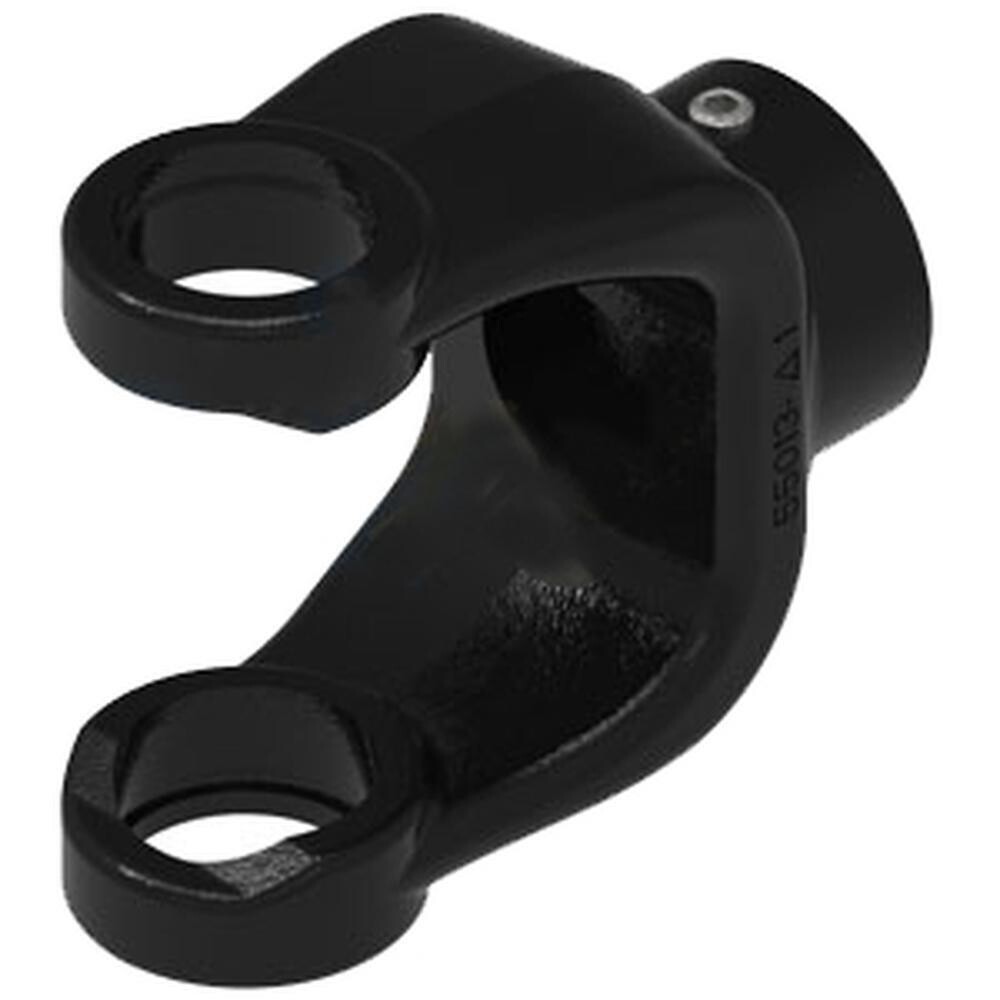

The 800-5524 Implement PTO Yoke (55-Series x 1-1/2") is a heavy-duty Weasler implement yoke that serves as the final connection between the PTO driveshaft and the attached implement or machine. Designed for high-horsepower PTO applications, this yoke features a 1-1/2" round bore with keyway and a setscrew connection, providing a secure, serviceable attachment to the implement input shaft. Weasler implement yokes are offered in a wide range of bore and mounting configurations, and this 55-Series yoke is built to handle demanding agricultural power transfer.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-5524
• Brand / Series: Weasler 55-Series
• Product Type: Implement PTO yoke
• Function: Final PTO connection between driveshaft and implement
• Bore Size: 1.50"
• Bore Type: Round with keyway
• Keyway Size: 0.38"
• Connection Method: Setscrew
• Setscrew Size: 3/8-16
• Power Rating @ 1000 RPM: 211 HP
• Power Rating @ 540 RPM: 137 HP
• Overall Length: 4.63"
• Height: 5.13"
• Width: 2.63"
• Weight: 6.28 lb
• Shipping Weight: 6.28 lb
• Shipping Dimensions: 5.71" L × 5.13" H × 2.63" W
• Shipping Volume: 77.04 in³

Ideal For

• High-horsepower PTO applications using Weasler 55-Series driveline components
• Replacing a worn or damaged implement-side PTO yoke
• Implements requiring a 1-1/2" round shaft with keyway and setscrew retention
• Agricultural equipment operating up to 211 HP @ 1000 RPM or 137 HP @ 540 RPM
• Shops and equipment owners needing a reliable, serviceable PTO yoke for heavy-duty use
