Implement Pto Yoke, 55-Series X 1-3/4"

Implement Pto Yoke, 55-Series X 1-3/4"

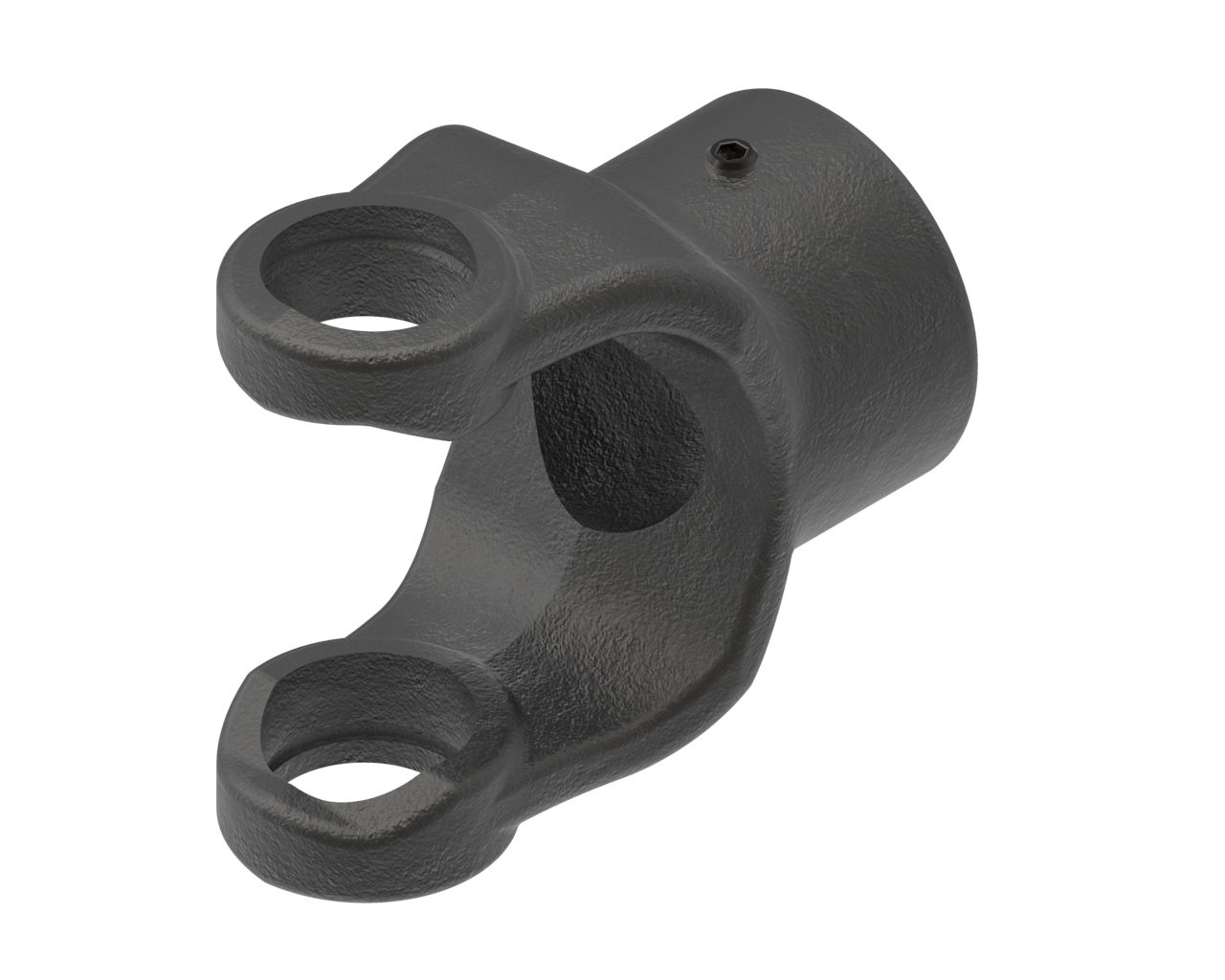

The 800-5528 Implement PTO Yoke is a Weasler 55-Series implement-side yoke that serves as the final connection between the PTO driveline and the machine or implement. Built with a 1-3/4" round bore with keyway and a set screw connection, it’s designed for high-capacity applications, rated up to 137 HP @ 540 RPM and 211 HP @ 1000 RPM. Its robust dimensions and keyed bore help provide a secure, dependable drive connection for demanding PTO-driven equipment.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-5528
• Brand / Series: Weasler 55-Series
• Product Type: Implement PTO yoke
• Bore Size: 1.75" (44 mm)
• Bore Style: Round with keyway
• Keyway Size: 0.38" (10 mm)
• Connection Type: Set screw
• Set Screw Size: 3/8"-16
• HP Rating: 137 HP @ 540 RPM; 211 HP @ 1000 RPM
• Overall Length: 4.62" (117 mm)
• Height: 5.13" (130 mm)
• Width: 2.63" (67 mm)
• Weight: 5.94 lb (3 kg)
• Shipping Dimensions: 5.7" L × 5.13" H × 2.63" W
• Shipping Weight: 5.94 lb
