Implement Pto Yoke, 55-Series X 1-3/8"

Implement Pto Yoke, 55-Series X 1-3/8"

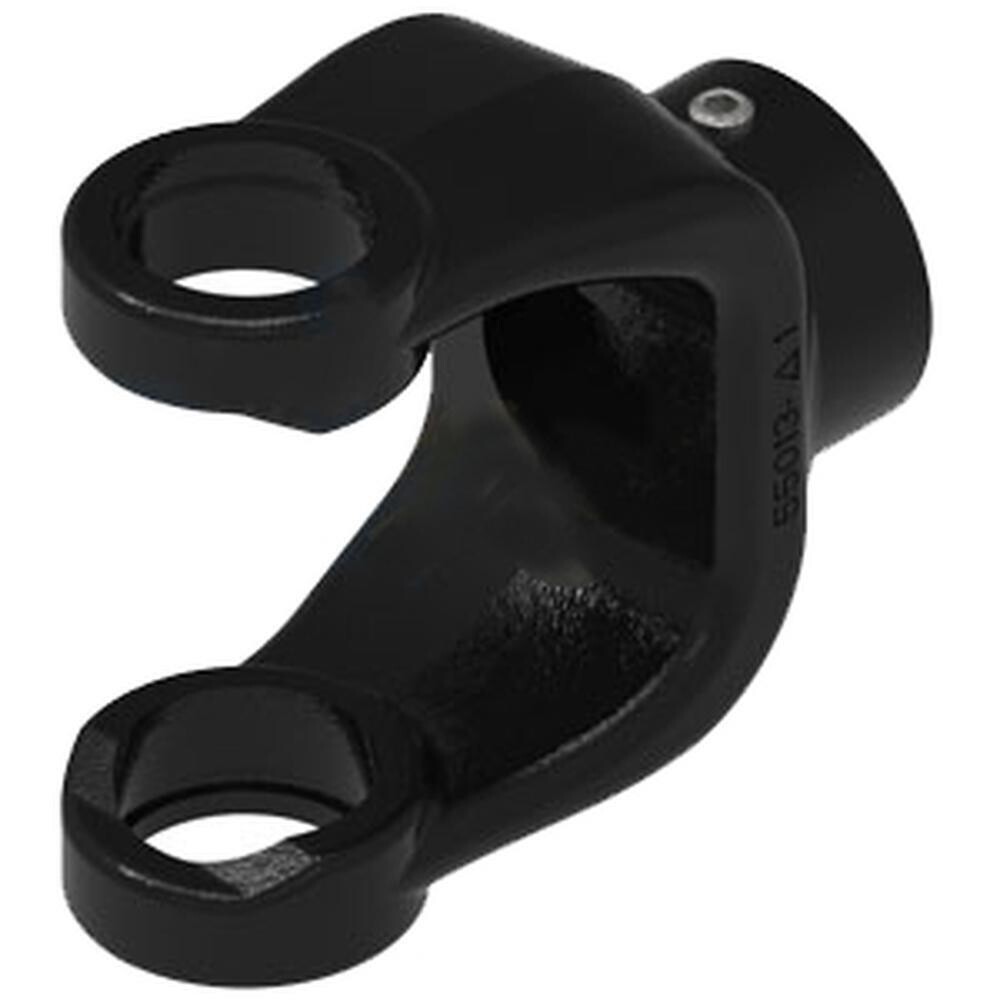

The Weasler Implement PTO Yoke (800-5522) is the final driveline connection between a 55-Series PTO shaft and your implement, providing a secure, serviceable interface for reliable power transfer. Featuring a round bore with keyway and set-screw connection, it’s built to handle high horsepower applications on demanding equipment.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Model / Part Number: 800-5522
• Product Type: Implement PTO yoke
• Series Compatibility: 55-Series
• Bore Type: Round with keyway
• Bore Size: 2.00″ (51 mm)
• Keyway Size: 0.50″ (13 mm)
• Connection Type: Set screw
• Set Screw Size: 1/2-13
• Horsepower Rating @ 540 RPM: 137 HP (102 kW)
• Horsepower Rating @ 1000 RPM: 211 HP (157 kW)
• Overall Length: 4.63″ (118 mm)
• Height: 5.12″ (130 mm)
• Width: 2.63″ (67 mm)
• Weight: 6.93 lb (3 kg)
• Shipping Dimensions: 5.71″ L × 5.125″ H × 2.63″ W (15 cm × 13 cm × 7 cm)
• Shipping Volume: 76.96 in³ (1261 cm³)

Ideal For

• Replacing a worn implement-end yoke on 55-Series PTO drivelines
• Connecting PTO shafts to implements using a round bore with keyway setup
• High-horsepower equipment requiring strong PTO driveline components
• Farm and industrial PTO driveline repair and maintenance
