Implement Pto Yoke, 55-Series X 2"

Implement Pto Yoke, 55-Series X 2"

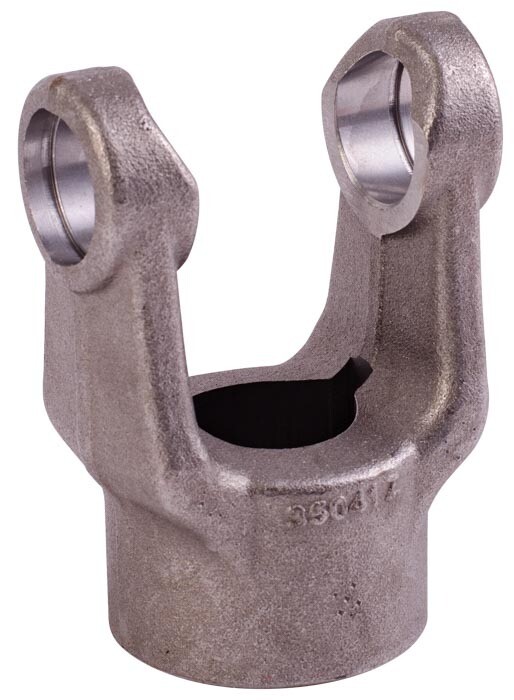

The Weasler Implement PTO Yoke (55-Series, 2" bore) is the final driveline connection between your PTO shaft and the implement, providing a strong, dependable interface for high-horsepower applications. Designed with a 2.00" round bore with keyway and a set screw connection, this yoke is built for secure mounting and reliable torque transfer, making it a solid choice for replacing worn yokes or building/repairing PTO drivelines on demanding equipment.

Country of Origin: Varies by production batch

Key Features / Specifications

• Series: 55-Series
• Bore size: 2.00" (51 mm)
• Bore type: Round with keyway
• Keyway: 0.50" (13 mm)
• Connection type: Set screw
• Set screw size: 1/2-13
• Power rating @ 540 RPM: 137 HP (102 kW)
• Power rating @ 1000 RPM: 211 HP (157 kW)
• Overall length: 4.63" (118 mm)
• Height: 5.12" (130 mm)
• Width: 2.63" (67 mm)
• Weight: 6.93 lb (3 kg)
• Shipping dimensions: 5.71" L × 5.125" H × 2.63" W (15 cm × 13 cm × 7 cm)

Ideal For

• Replacing an implement-end PTO yoke on 55-Series drivelines
• High-horsepower PTO implements operating at 540 or 1000 RPM
• Farm equipment driveline repair and maintenance
• Applications needing a 2" round bore with keyway and set screw retention
• Building or refurbishing PTO shafts for tractors and implements
